1.25G 1550nm 40km 1×9 Transceiver Module
Description
1.25G 1550nm 40km 1×9 Transceiver Module
Product Description
F-tone Networks’s FTTR-xx12-xxI series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 1.5Gbps. These modules are fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provide the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate for communications
Product Features
● VCSEL/FP/DFB Laser Diode Transmitter
● Up to 0.55 Km on 62.5/125μm MMF，Up to 80 Km on 9/125μm SMF
● 3.3V or 5Vpower supply
● SC/ST/FC duplex optical interface
● (LV)PECL Differential Input/ Output and (LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● Gigabit Ethernet
● Fiber Channel
● Digital Video Transmission System
● Other Optic Link

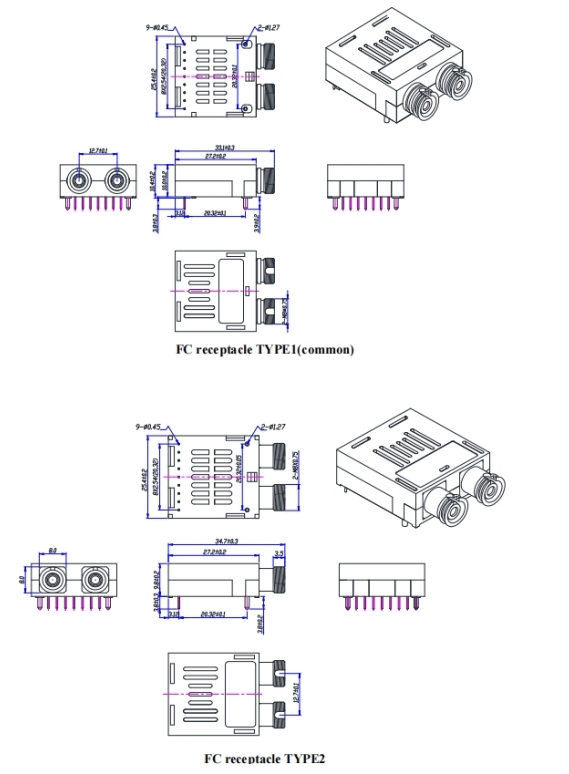

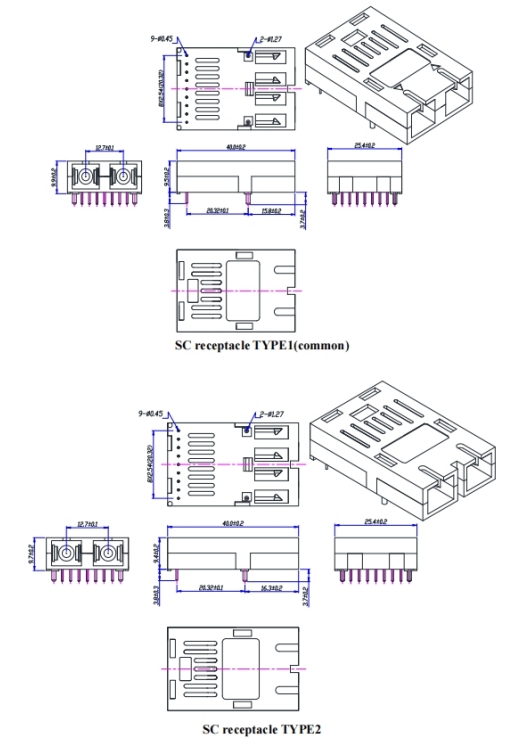

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTTR-8512-02I |
MM |
850(VCSEL) |
0.5 |
|
FTTR-M1312-02I |
MM |
1310(FP) |
0.55 |
|
FTTR-1312-20I |
SM |
1310(FP) |
20 |
|
FTTR-1312-40I |
SM |
1310(DFB) |
40 |
|
FTTR-1512-20I |
SM |
1550(DFB) |
20 |
|
FTTR-1512-40I |
SM |
1550(DFB) |
40 |
|
FTTR-1512-60I |
SM |
1550(DFB) |
60 |
|
FTTR-1512-80I |
SM |
1550(DFB) |
80 |
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
