标准光模块
1.25Gbps 1310nm 10KM LC MiniSFF 光收发一体模块
Description
产品描述
●纯国产零部件

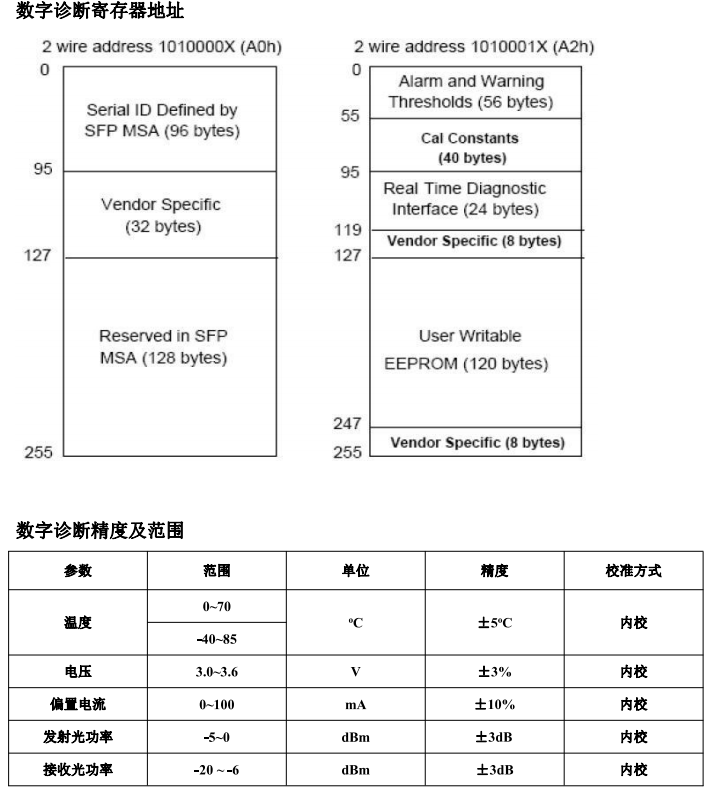

●遵循sff-8472的数字诊断功能

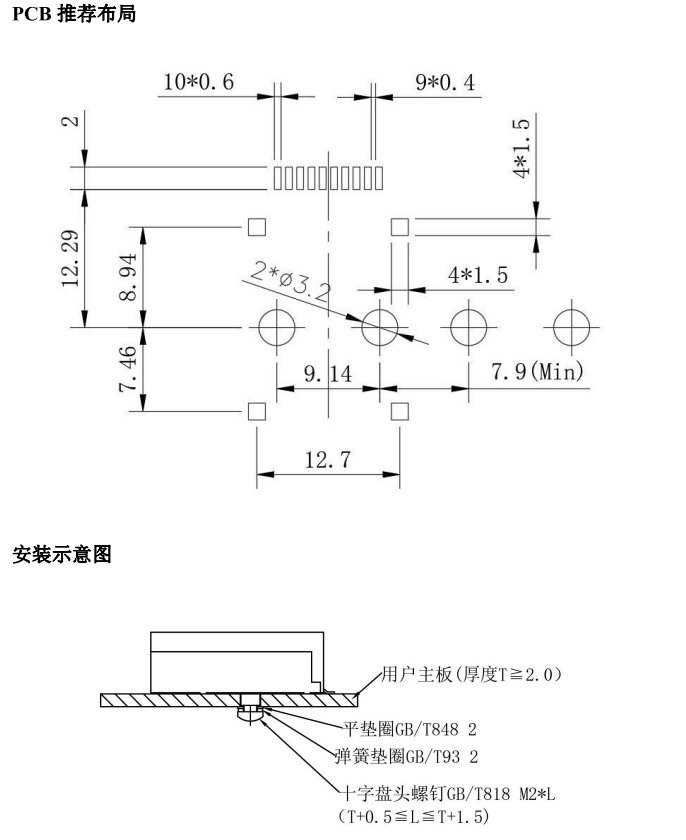

●提供高速的I/O表面贴装管脚

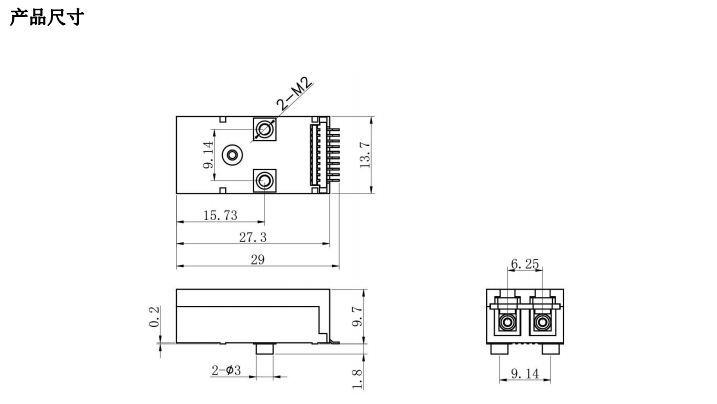

●全金属外壳设计
●传输距离可达10km
●工业级温度使用范围，耐振动设计

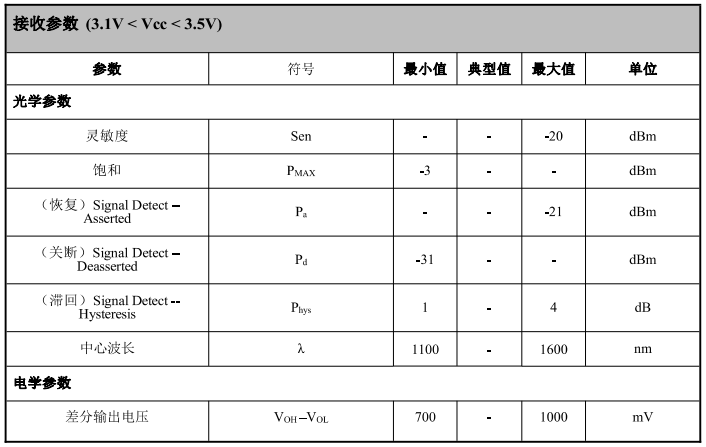

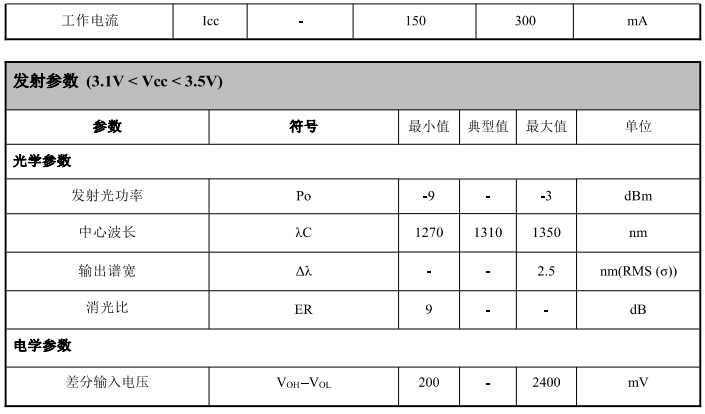

●1310nm FP激光器，PIN光电探测接收器
●单电源供电(3.3V)
●工作温度：

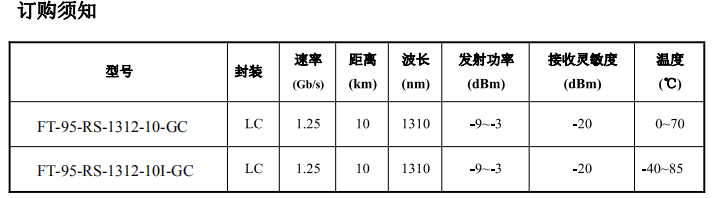

FT-95-RS-1312-10-GC 0℃~+70℃
FT-95-RS-1312-10I-GC -40℃~+85℃

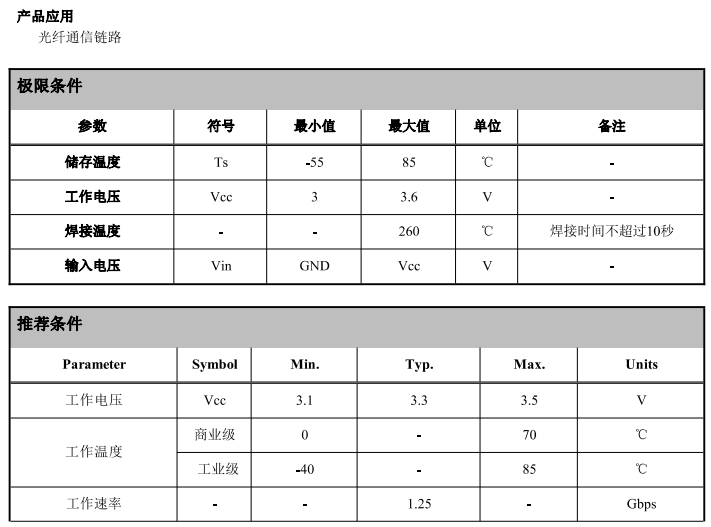

产品应用
●光纤通信链路
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
