1.25Gbps Compact Bi-Di SFP Transceiver, 20km Reach

Description
The CSFP transceivers are high performance, cost effective modules supporting 1.25Gbps and 20km transmission distance with SMF.The transceiver consists of three sections: a DFB laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.The transceivers are compatible with Compact SFP Multi-Source Agreement (MSA) and SFF-8472. For further information, please refer to SFP MSA.

Features
● Support 1.25Gbps data links
● 1490nm DFB laser and PIN photodetector for 20km transmission
● 2xBi-directional transceivers in 1 SFP transceiver package
● Compliant with CSFP MSA Option 2 and SFF-8472
● Digital Diagnostic Monitoring:Internal Calibration or External Calibration
● Compatible with SONET OC-24 system
● Compatible with RoHS
● +3.3V single power supply
● Operating case temperature:
0 to +70°C(Commercial)
-40°C to +85°C (Industrial)

Applications
● SONET OC-24 system
● Gigabit Ethernet
● Fiber Channel
● Switch to Switch interface
● Point to Point FTTH Application
● Other optical transmission systems

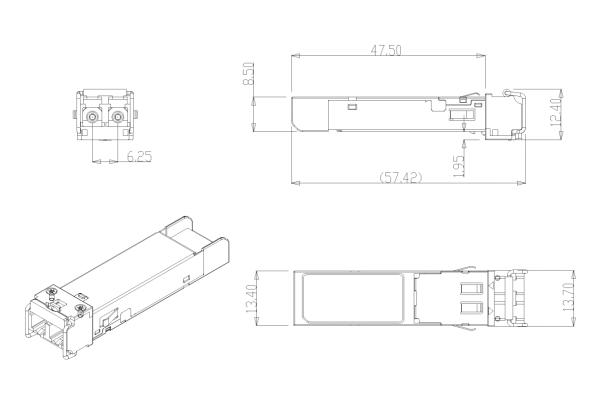

Mechanical Dimensions

Ordering information

注：本产品有全国产化型号可选

本产品为CSFP系列光模块，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
