1.25Gbps单模 MiniSFF单纤双向光收发一体模块
Description
1.25Gbps单模 MiniSFF单纤双向光收发一体模块
产品特征
● 高可靠、全金属外壳、抗振动设计
● 3.3V单电源供电
● 宽工作温度范围
● MiniSFF封装，FC接口
● 传输距离：20km
● 遵循sff-8472的数字诊断功能
● 工作温度 : -55℃~+85℃
产品应用
● 光纤通信链路

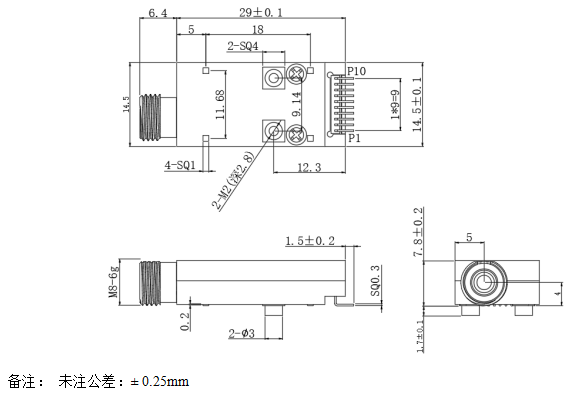

外形尺寸
订购须知
|
型号 |
封装 |
速率 (Gb/s) |
距离 (km) |
波长 (nm) |
电压 (V) |
发射功率 (dBm) |
接收灵敏度 (dBm) |
温度 (℃) |
|
FTMF-B1312-20DM |
FC |
1.25 |
20 |
TX1310DFB/RX1550 |
3.3 |
-2 to +3 |
-18 |
-55 ~85 |
|
FTMF-B1512-20DM |
TX1550DFB/RX1310 |
注：本产品有全国产化型号可选
本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
