标准光模块
1×9 1.25G 80km 单收光模块
Description
1×9 1.25G 80km 单收光模块
Product Description
F-tone Networks’s FTTR-Rxx12-80 receiver module is the perfect solutionfor high -speed communication networks.The receiver modules support data rates up to 1.5Gbps. The module is fully compliant with the Multi-sourced 1×9 protocol.The receiver module provides the system designer with products to implement a range of Fiber Channel and Gigabit Ethernet designs at the 1.06/1.25Gbps rate for communications.
Product Features
● PIN-TIA Receiver
● Up to 80 Km on 9/125μm SMF
● 3.3V or 5Vpower supply
● SC/ST/FC duplex optical interface
● (LV)PECL/CML Differential Output and(LV)PECL or( LV)TTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard ：0 to+70℃) or (Industrial： -40°C to +85°C)
Application
● Gigabit Ethernet
● Fiber Channel
● Digital Video Transmission System
● Other Optic Link

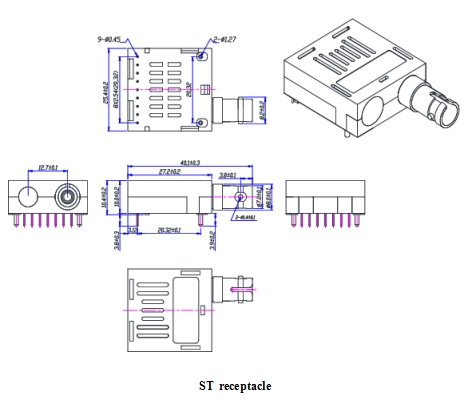

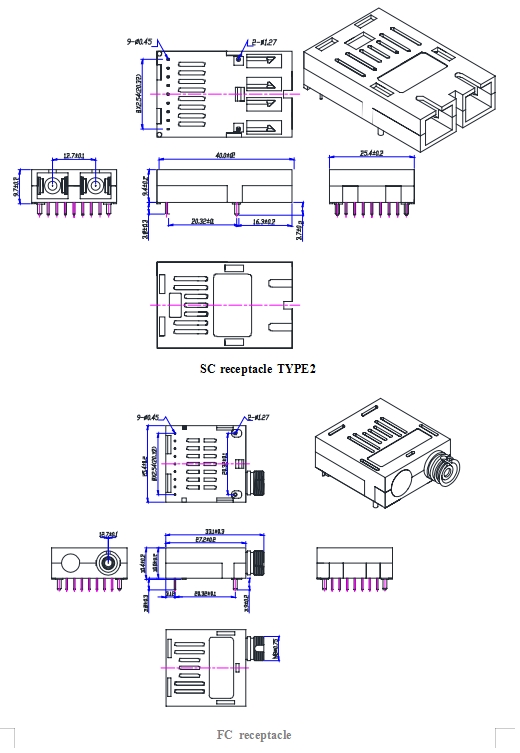

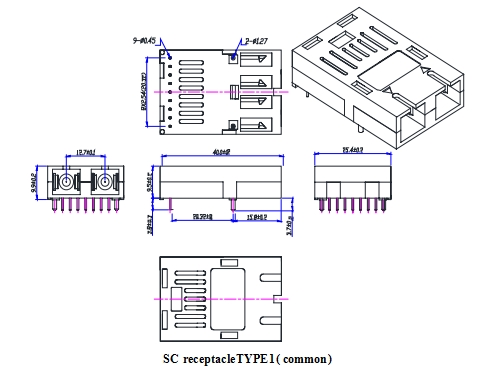

Module Outline Drawing (Units in mm)
Ordering information
|
产品型号 |
基本参数 |
|
FTTR-Rxx12-80 |
1x9光模块-1.25G-80KM |
注：本产品有全国产化型号可选，仅展示部分参数，如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
