标准光模块
1×9 2.5G 1310nm 20km 光模块
Description
1×9 2.5G 1310nm 20km 光模块
Product Description
F-tone Networks’s FTTR-xx24-xx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 2.5Gbps. The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides tthe system designer with products to implement a range of Fiber Channel and SDH STM- 16 and SONET OC-48 system.
Product Features
● DFB Laser Diode Transmitter
● Up to 80 Km on 9/125μm SMF
● 3.3Vpower supply
● SC/ST/FC duplex optical interface
● CML Differential Input/ Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard ：0 to+70℃) or (Industrial： -40°C to +85°C)
Application
● Fiber channel
● Digital video transmission system
● Other Optic Link

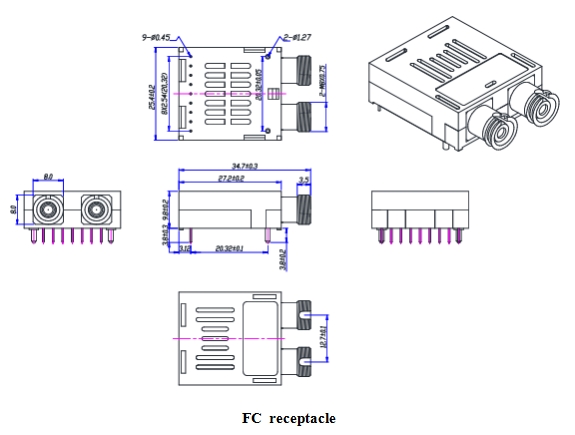

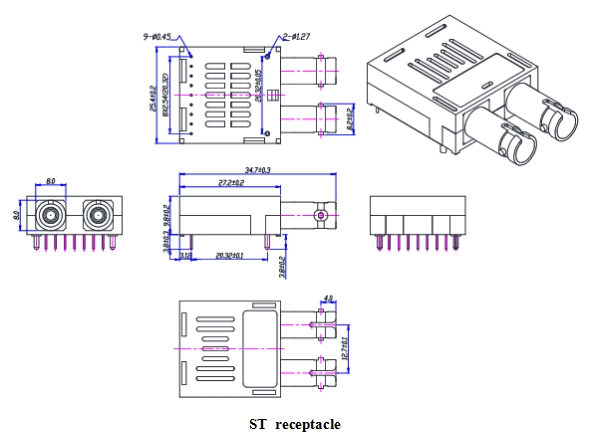

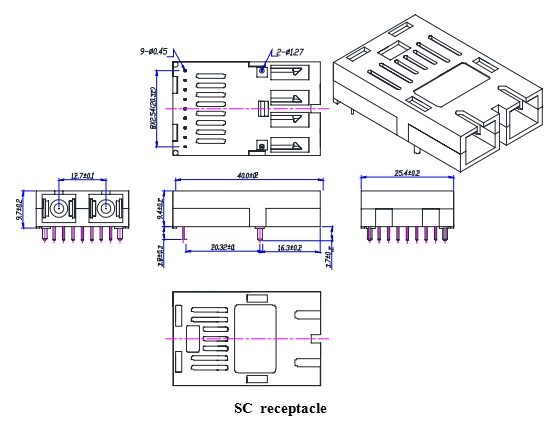

Module Outline Drawing (Units in mm)
Ordering information
|
产品型号 |
基本参数 |
|
FTTR-1324-20 |
1x9光模块-SM1310-2.5G-20KM |
|
FTTR-1324-40 |
1x9光模块-SM1310-2.5G-40KM |
|
FTTR-1524-20 |
1x9光模块-SM1550-2.5G-20KM |
|
FTTR-1524-40 |
1x9光模块-SM1550-2.5G-40KM |
|
FTTR-1524-80 |
1x9光模块-SM1550-2.5G-80KM |
注：本产品有全国产化型号可选，仅展示部分参数，如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
