1×9 DC-10Mbps MM1310 2KM 光模块
Description
1×9 DC-10Mbps MM1310 2KM 光模块
Product Description
F-tone Networks’s FTTR-xxL2-xx series of transceiver modules are the perfect solution for ultra-low speed communication networks.These transceiver modules support data rates up to 10Mbps. The module is fully compliant with the Multi-sourced 1×9 protocol.These transceiver modules provides the system designer with products to RS232/RS485/RS422 fiber transmission.
Product Features
● VCSEL/FP Laser Diode Transmitter
● Up to 2 Km on 62.5/125μm MMF ，Up to 40 Km on 9/125μm SMF
● 3.3V or 5Vpower supply
● SC/ST/FC duplex optical interface
● (LV)TTL Input / Output and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard ：0 to+70℃) or (Industrial： -40°C to +85°C)

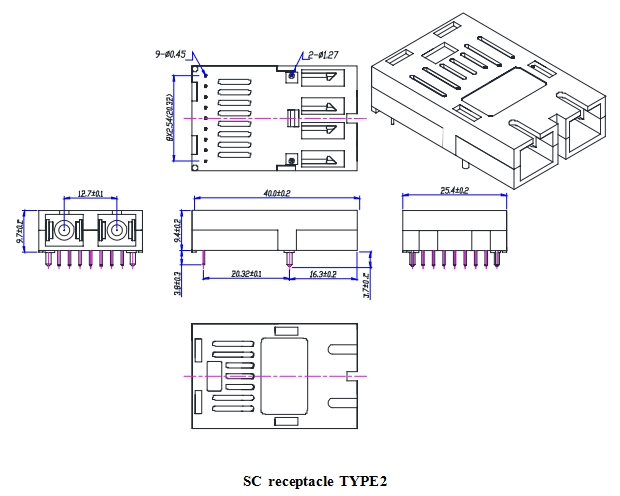

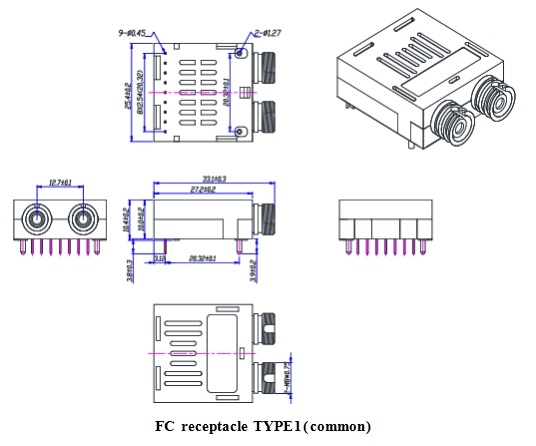

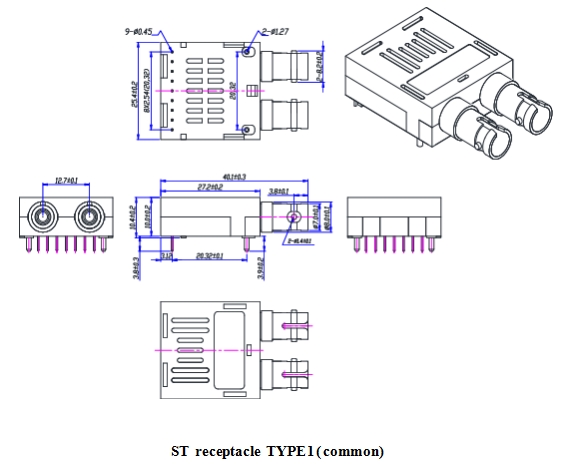

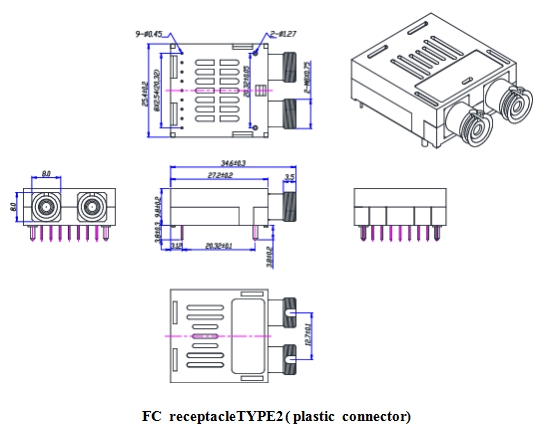

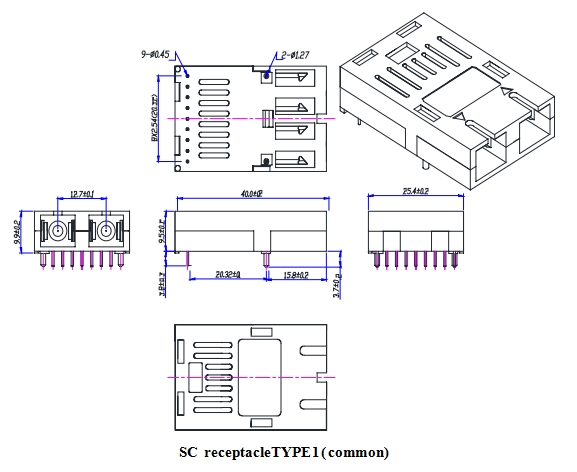

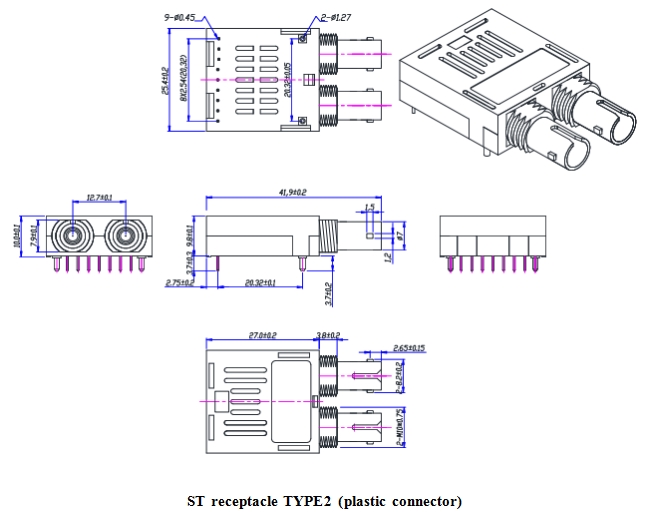

Module Outline Drawing (Units in mm)
Ordering information
|
产品型号 |
基本参数 |
|
FTTR-85L2-02 |
1x9光模块-MM850-10M-0.5KM |
|
FTTR-13L2-02 |
1x9光模块-MM1310-10M-2KM |
|
FTTR-13L2-20 |
1x9光模块-SM1310-10M-20KM |
|
FTTR-13L2-40 |
1x9光模块-SM1310-10M-40KM |
北亿纤通 | F-tone Networks
企业邮箱：sales@f-tone.com
企业网站：www.f-tone.com
企业网站：www.sfpgmk.com
企业电话：028-85255257
企业传真：028-85977702
注：本产品有全国产化型号可选，仅展示部分参数，如有需要，请您联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
