Description
The F-tone Networks 100GBASE-LR4 CFP module is the CFP optical transceiver which is a hot pluggable form factor designed for high speed optical networking application. The module is designed for 100Gigabit Ethernet application and provides 100GBASE-LR4 compliant optical interface, CAUI electrical interface and MDIO module managementinterface. The module converts 10-lane 10.3Gb/s electrical data streams to 4-lane LAN-WDM25.78Gb/s optical output signal and4-laneLAN-WDM25.78Gb/s optical inputsignal to 10-lane10.3Gb/s electrical data streams. This 10-lane 10.3Gb/s electrical signal is fully compliant with802.3ba CAUI specification and allows FR4 host PCB trace up to 25cm. The high performance Cooled LAN-WDM EML transmitter and high sensitivity PIN receiver provide superior performance for 100Gigabit Ethernet applications up to 10km links and compliant optical interface with IEEE802.3ba Clause 88 100GBASE-LR4 requirements.

Features
● Operating optical data rate up to 112Gbps
● Transmission distance up to 10km
● CFP MSA compliant
● Compliant to 100GbE IEEE 802.3ba specification for 100GBASE-LR4 links
● OTU4 compatible
● 1310 nm window cooled EA-DFB LD and PIN ROSA
● 10 parallel electrical serial interface and AC coupling of CML signals
● Hot pluggable electrical interface
● Low power dissipation<9W
● Single 3.3V power supply
● RoHS 6 compliant(lead free)
● Case operating temperature
     Commercial: 0 ~ +70℃
     Industrial: -40 ~ +85℃

Applications
● 100GbE IEEE 802.3ba 100GBASE-LR4
● OTN-OTU4
● Switch to switch interface or Switch to router interface

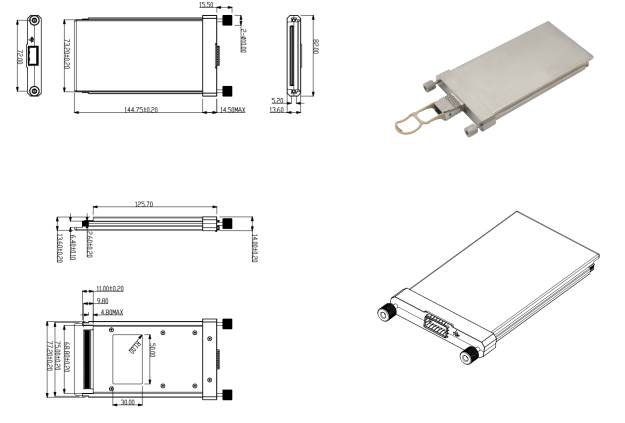

Mechanical Dimensions

Ordering information

本产品为25G~400G高速光模块系列，如有需要，请联系我们。

注：本产品有全国产化型号可选
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
