100GHz 40-CH Athermal Gaussian AWG specification
Description
Product PN:
产品描述
Athermal AWG series products take silica-on-silicon planar technology and it is built with high performance and reliability, which can be used in general DWDM systems. Based on the athermal design and packing, it is totally passive product which does not require any electrical power or temperature control. For 100G AAWG Mux/Demux, it supports up to 48-CH based on a single chipset. Customized wavelengths, package and fiber options are also available.
特点/Features
低损耗/Low Insertion Loss
宽工作带宽/Wide pass band
高通道隔离度/High Channel Isolation
高稳定性和可靠性/High Stability and reliability
应用/Applications
波分复用网络/WDM Network
电信通信/Telecommunication
接入网/Access Network
极限条件/Absolute Maximum Ratings
|
参数/Parameters |
条件/Conditions |
规格/Specifications |
单位/Unit |
|
|
Min. |
Max. |
|||
|
工作温度/Operating Temperature |
|
-5 |
65 |
oC |
|
工作湿度/Operating Humidity |
无冷凝环境/Non-Condensing Environment |
0 |
95 |
%RH |
|
存储温度/Storage Temperature |
|
-40 |
85 |
oC |
|
存储湿度/Storage Humidity |
无冷凝环境/Non-Condensing Environment |
0 |
95 |
%RH |
光学性能/Optical Specifications
|
参数/Parameters |
条件/Conditions |
规格/Specifications |
单位/Unit |
||
|
Min. |
Typ. |
Max. |
|||
|
通道数/Number of Channels |
|
40 |
CH |
||
|
通道间隔/Number Channel Spacing |
|
100 |
GHz |
||
|
ITU 频率/ITU Frequency |
On ITU grid in C-band Even |
195.90 |
|
192.00 |
THz |
|
ITU波长/ITU Wavelength |
On ITU grid in C-band Even. |
1530.33 |
|
1561.42 |
nm |
|
中心波长带宽/CenterWavelength Channel Passband |
Centered at each ITUchannel frequency |
± 0.1 |
nm |
||
|
波长精度/Wavelength Stability |
Maximum range of the wavelength errorofall channels and temperatures in average polarization. |
±0.05 |
nm |
||
|
1dB带宽/1dB Channel Bandwidth |
Clear channel bandwidth defined by passband shape. For each Channel. |
0.2 |
|
|
nm |
|
3dB带宽/3dB Channel Bandwidth |
Clear channel bandwidth defined by passband shape. For each channel. |
0.36 |
|
|
nm |
|
ITU波长通道插损/ Optical Insertion Loss at ITU grid |
Defined as the minimum transmission at ITU wavelength for all channels. For each channel, at all temperatures and polarizations with connectors. |
|
|
4.5 |
dB |
|
相邻通道隔离度/ Adjacent Channel Isolation |
Ratio of peaktransmission to themaximum transmissionover both adjacent ITUwavelengths |
25 |
|
|
dB |
|
非相邻通道隔离度/ Non-Adjacent,Channel Isolation |
Ratio of peaktransmission in channel passband to themaximum transmissionover all non-adjacentITU wavelength |
30 |
|
|
dB |
|
总串扰/Total Crosstalk |
Ratio of power inchannel to power in allother ITU wavelength |
22 |
|
|
dB |
|
插损一致性/ Insertion Loss Uniformity |
The difference between the maximum and minimum of passbandacross all channels |
|
|
1.2 |
dB |
|
方向性/Directivity(Mux Only) |
Ratio of reflected power out of any channel(other than channel n)to power in from the input channel n |
40 |
|
|
dB |
|
回损/Optical Return loss |
Input & output ports |
40 |
|
|
dB |
|
偏振相关损耗/ Polarization Dependent Loss in Clear Channel Band |
Worst-case value measured in ± 20GHz around ITU wavelength for each port. |
|
|
0.6 |
dB |
|
偏振模式色散 Polarization Mode Dispersion |
Maximum differentialgroup delay withinreference ITUwavelength |
|
|
0.5 |
ps |
|
色度色散/Chromatic Dispersion |
Maximum change rateof group delay versuswavelength withinreference ITUwavelength |
-20 |
|
+20 |
ps/nm |
Note: Typical channel plan: ITU wavelengths 100G C20(1561.42nm)-C59(1530.33nm).

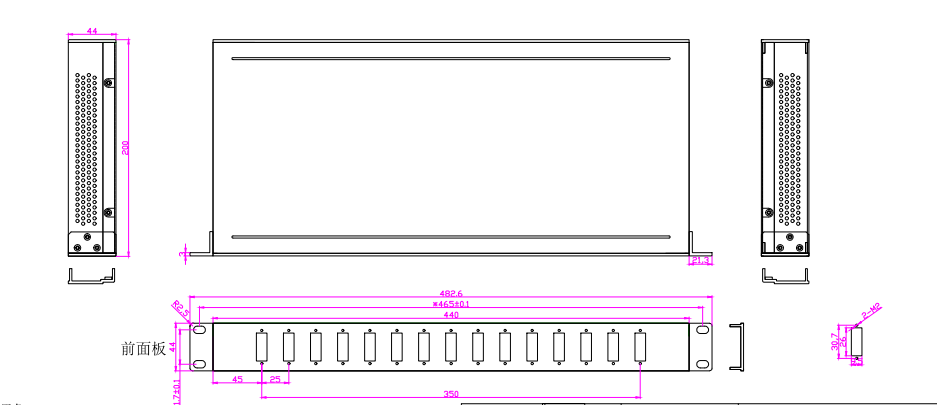

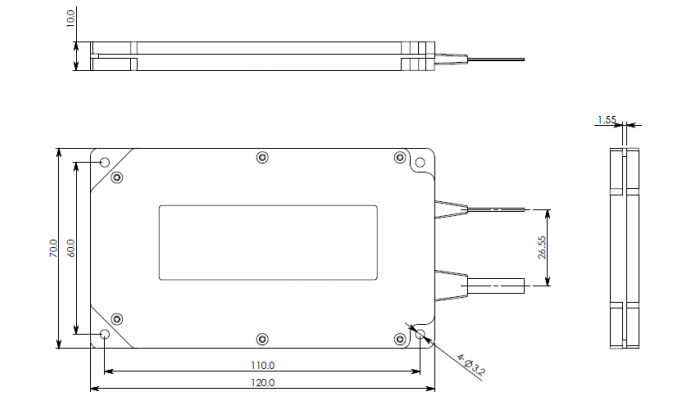

机械尺寸,光纤输出和连接头配置/Mechanical Dimensions, Fiber Coding and Connector Specifications
|
尺寸/Dimensions |
120 x 70 x 10/484 x 200 x 44 |
mm |
|||||||||||||
|
光纤类型/Fiber Type |
公共端/Common SMF-28e fiber with 900um loose tube/ SMF-28e 加900um松套管 通道端/Channels: SMF-28eRibbons |
||||||||||||||
|
光纤长度/Fiber Length |
输入端/Common |
1000mm ± 50mm with 900um loose tube/输入纤长1000mm ± 50mm 900um套管 |
|||||||||||||
|
输出端/Channels |
Ribbon 500mm± 20 mm and Fan out 500mm± 30mm with 900um loose tube /输出带纤500mm± 20 mm，加分支器纤长500mm± 30mm |
||||||||||||||
|
公共端/Common |
颜色/Color |
白/white |
|||||||||||||
|
带纤标识/RibbonIdentification |
带纤末端贴数码贴标识 /Label with ribbon number will be placed close to end-points |
||||||||||||||
|
连接器类型/Connector Options |
输入端/Common |
LC/UPC |
|||||||||||||
|
输出端/Channels |
LC/UPC |
||||||||||||||
|
带纤光纤标识/Fiber Identification in Ribbon |
1 |
蓝/Blue |
2 |
橙/Orange |
3 |
绿/Green |
4 |
褐/Brown |
5 |
灰/Grey |
6 |
白/White |
|||
|
7 |
红/Red |
8 |
黑/Black |
9 |
黄/Yellow |
10 |
紫/Purple |
11 |
粉/Pink |
12 |
水/Aqua |
||||
|
*可按客户要求定制/Customized design available |
|||||||||||||||
Channel Plan
|
Label |
ITU Frequency |
ITU Wavelength |
Label |
ITU Frequency |
ITU Wavelength |
|
(THz) |
(nm) |
(THz) |
(nm) |
||
|
C14 |
191.4 |
1566.31 |
C38 |
193.8 |
1546.92 |
|
C15 |
191.5 |
1565.50 |
C39 |
193.9 |
1546.12 |
|
C16 |
191.6 |
1564.68 |
C40 |
194 |
1545.32 |
|
C17 |
191.7 |
1563.86 |
C41 |
194.1 |
1544.53 |
|
C18 |
191.8 |
1563.05 |
C42 |
194.2 |
1543.73 |
|
C19 |
191.9 |
1562.23 |
C43 |
194.3 |
1542.94 |
|
C20 |
192 |
1561.42 |
C44 |
194.4 |
1542.14 |
|
C21 |
192.1 |
1560.61 |
C45 |
194.5 |
1541.35 |
|
C22 |
192.2 |
1559.79 |
C46 |
194.6 |
1540.56 |
|
C23 |
192.3 |
1558.98 |
C47 |
194.7 |
1539.77 |
|
C24 |
192.4 |
1558.17 |
C48 |
194.8 |
1538.98 |
|
C25 |
192.5 |
1557.36 |
C49 |
194.9 |
1538.19 |
|
C26 |
192.6 |
1556.55 |
C50 |
195 |
1537.40 |
|
C27 |
192.7 |
1555.75 |
C51 |
195.1 |
1536.61 |
|
C28 |
192.8 |
1554.94 |
C52 |
195.2 |
1535.82 |
|
C29 |
192.9 |
1554.13 |
C53 |
195.3 |
1535.04 |
|
C30 |
193 |
1553.33 |
C54 |
195.4 |
1534.25 |
|
C31 |
193.1 |
1552.52 |
C55 |
195.5 |
1533.47 |
|
C32 |
193.2 |
1551.72 |
C56 |
195.6 |
1532.68 |
|
C33 |
193.3 |
1550.92 |
C57 |
195.7 |
1531.90 |
|
C34 |
193.4 |
1550.12 |
C58 |
195.8 |
1531.12 |
|
C35 |
193.5 |
1549.32 |
C59 |
195.9 |
1530.33 |
|
C36 |
193.6 |
1548.51 |
C60 |
196 |
1529.55 |
|
C37 |
193.7 |
1547.72 |
C61 |
196.1 |
1528.77 |
订购信息/Ordering Information
|
FT-13 |
XAWG |
X |
XX |
X |
XXX |
X |
X |
X |
XX |
|
|
Type |
Band |
Number of Channels |
Spacing |
1st Channel |
Chip Type |
Package |
Fiber Length (Total Length) |
In/Out Connector |
|
GAWG=Gaussian AWG |
C=C-Band L=L-Band D=C+L-Band X=Customize |
16=16-CH 32=32-CH 40=40-CH 48=48-CH 96=96-CH XX=Special |
1=100G 2=200G 5=50G X=Special |
C62=C62 H61=H61 C60=C60 H59=H59 . XXX=special |
G=Gaussian F=Flat Top |
M=Module R=Rack X=Special |
1=0.5m 2=1m 3=1.5m 4=2m X=Specify |
0=None 1=FC/APC 2=FC/PC 3=SC/APC 4=SC/PC 5=LC/APC 6=LC/PC 7=ST/UPC X=Specify |
