100W In-line Isolator
Description

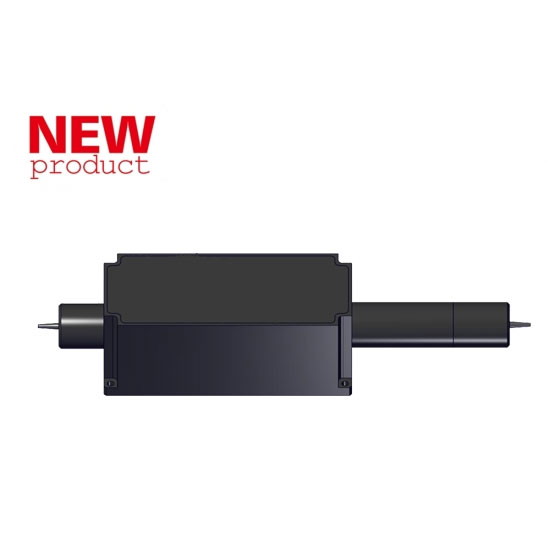

100W In-line Isolator
The 100W In-line Isolator is characterized with low insertion loss, high isolation, high power handling, high return loss, excellent environmental stability and reliability. It is ideal for fiber laser and instrumentation applications.
Features
| Specifications | ||
| Parameter | Unit | Value |
| Center Wavelength (λc) | nm | 1064 |
| Operating Wavelength Range | nm | λc ± 10 |
| Min. Isolation, 23 ℃, all polarization states, at λc | dB | 28 |
| Typ. Insertion Loss, at 23 ℃, at λc | dB | 0.5 |
| Max. Insertion Loss, at 23 ℃, at λc | dB | 0.8 |
| Max. Polarization Dependent Loss | dB | 0.1 |
| Min. Return Loss (Input/Output) | dB | 50/50 |
| Max. Optical Average Power | W | 50 or 100 |
| Max. Peak Power for ns Pluse | kW | 20 |
| Fiber Type | Specified by ordering info | |
| Max. Tensile Load | N | 5 |
| Operating Temperature | ℃ | 10 to +50 |
| Storage Temperature | ℃ |
-10 to +60 |
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
