1030/1064/1310/1480/1550光纤偏振分束器&合束器
Description

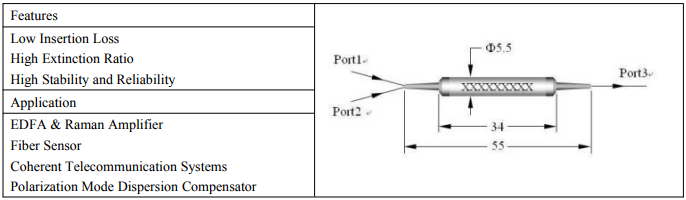

Polarization Beam Combiner/Splitter
工作温度（多种温度级别可选）:
商用级：0~+7度
扩展级：-10~+80度
工业级：-40~+85度
军品级：-55~+85度

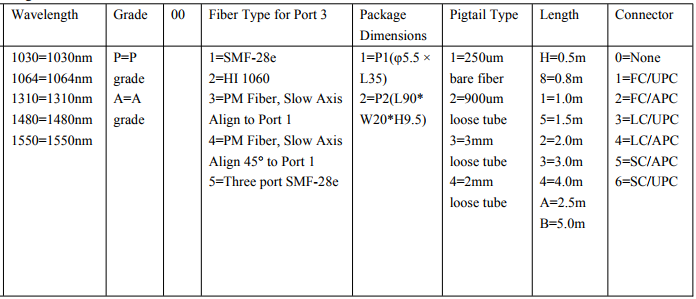

Ordering Information:FT-45-PBS/PBC
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
