1064 nm Singlemode fiber Collimator
Description
Description
The 1064 nm Fiber Collimator is the basic element for in-line fiber optics components, such as isolator and WDM. It has low insertion and high return loss. The unique processing and high quality AR coating also enable this collimator to handle high power
Specifications
|
Parameter |
Unit |
Value |
|
Center Wavelength (λc) |
nm |
1064 |
|
Operating Wavelength Range |
nm |
λc ± 30 |
|
Working Distance |
mm |
5 |
|
Typ. Insertion Loss |
dB |
0.25 |
|
Max. Insertion Loss |
dB |
0.30 |
|
Min. Return Loss |
dB |
55 |
|
Tensile Load |
N |
5 |
|
Fiber Type |
HI 1060 fiber |
|
|
Operating Temperature |
℃ |
-5 to +70 |
|
Storage Temperature |
℃ |
-40 to +85 |
*IL is 0.5 dB higher, RL is 5 dB lower for each connector added.

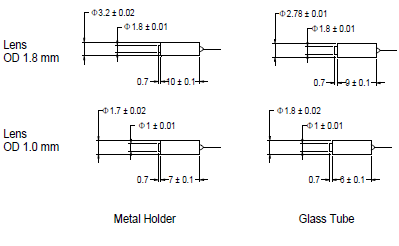

Package Dimensions
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
