1064nm Polarization Insensitive Isolator
Description
1064nm Single stage isolator, with 1m fiber (0.9mm cable), FC/PC connector
Specifications
|
Parameters |
unit |
Value |
|
Stage |
|
Single stage |
|
Grade |
|
P grade |
|
Center Wavelength |
nm |
1064 |
|
Operating Wavelength Range |
nm |
±5 |
|
Typ.Peak Isolation |
dB |
40 |
|
Min.Isolation at23℃ |
dB |
30 |
|
Typ.Insertion Loss at23℃ |
dB |
1.4 |
|
Max.Insertion Loss at-5℃to50℃ |
dB |
1.8 |
|
Min.Return Loss(Input/Output) |
dB |
55/50 |
|
Max.PDL at23℃ |
dB |
0.15 |
|
Max.Optical Power(CW) |
mw |
300 |
|
Max.Tensile Load |
N |
5 |
|
Fiber Type |
|
HI 1060 Fiber |
|
Operating Temperature |
℃ |
-5 to +50 |
|
Storage Temperature |
℃ |
-40 to +85 |
*Above specifications sre for device without connector.
**For devices with connectors, IL will be 0.3dB higher and be 5dB lower.

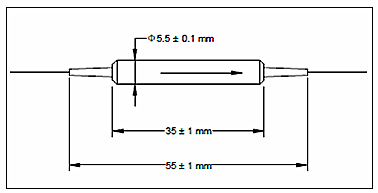

Package Dimensions
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
