10Gbps SFP+ BiDi 光模块,40km
Description
10Gbps SFP+ BiDi 光模块,40km
产品描述
FTCS-BXX1X-40DXX系列单模光模块是小型可插拔模块，用于双工光学数据通信，如IEEE 802.3ae定义的10GBASE-ER/EW。它带有SFP+20引脚连接器，可实现热插拔功能。
FTCS-BXX1X-40DXX模块专为单模光纤设计，工作波长为1270nm或1330nm；。发射器部分使用多量子阱DFB，该DFB符合国际安全标准IEC-60825的1类激光器。接收器部分使用安装在光学头和限幅后置放大器IC中的集成InGaAs探测器前置放大器（IDP）。
特征
● 高达10.3Gb/s的数据速率
● 1G/2G/4G/8G/10G光纤通道应用。
● 单工LC连接器双向SFP+光模块
● 单个3.3V电源
● 9/125um SMF上可达40km
● A： 1270nm DFB激光发射器，1330nm接收器
B:1330nm DFB激光发射器，1270nm接收器
● SFP+MSA SFF-8431兼容
● 符合数字诊断SFF-8472
● 符合RoHS标准且无铅
● 工作情况温度：
商业：0~+70°C
工业：-40~+85°C
● 对于OBSAI应用，速率分别为6.144Gb/s、3.072 Gb/s、1.536 Gb/s和0.768 Gb/s。
● 对于CPRI应用程序，速率分别为6.144Gb/s、3.072 Gb/s、2.4576 Gb/s、1.2288 Gb/s和0.6144 Gb/s。
应用
● 10GBASE-ER，10.3125Gbps
● 10GBASE-EW，9.953Gbps
● 其他光链路
● 对于OBSAI应用，速率分别为6.144Gb/s、3.072 Gb/s、1.536 Gb/s和0.768 Gb/s。
● 对于CPRI应用程序，速率分别为6.144Gb/s、3.072 Gb/s、2.4576 Gb/s、1.2288 Gb/s和0.6144 Gb/s。
● 1G/2G/4G/8G/10G光纤通道应用。

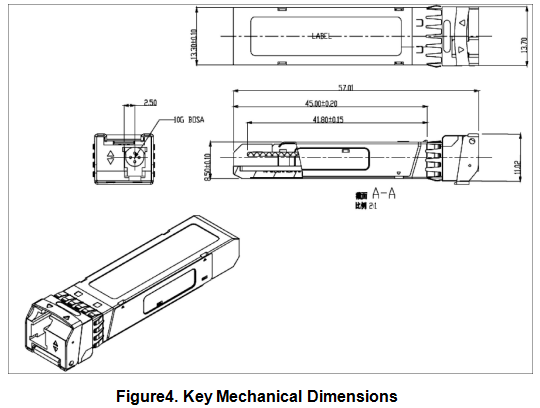

机械尺寸
订购信息
|
产品型号 |
产品描述 |
|
FTCS-B271X-40D |
1270nm/1330nm, 10Gbps, 40km, 0ºC ~ +70ºC |
|
FTCS-B331X-40D |
1330nm/1270nm, 10Gbps, 40km, 0ºC ~ +70ºC |
|
FTCS-B271X-40DI |
1270nm/1330nm, 10Gbps, 40km, -40 to +85°C |
|
FTCS-B331X-40DI |
1330nm/1270nm, 10Gbps, 40km, -40 to +85°C |
注：本产品有全国产化型号可选
本产品为BIDI SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
