10G SFP+ 无源电缆

4.5/5 rating (2 votes)

Description

F-tone公司专业研发制造10G SFP+ 无源电缆、10G SFP Passive Cable,符合MSA SFF-8431, 应用于10G以太网等数据中心互联场景。100%完美兼容全系列品牌服务器,交换机,路由器,PDH/SDH传输设备,EPON,GPON,10G EPON,10G GPON,WDM PON基站等等全系列设备

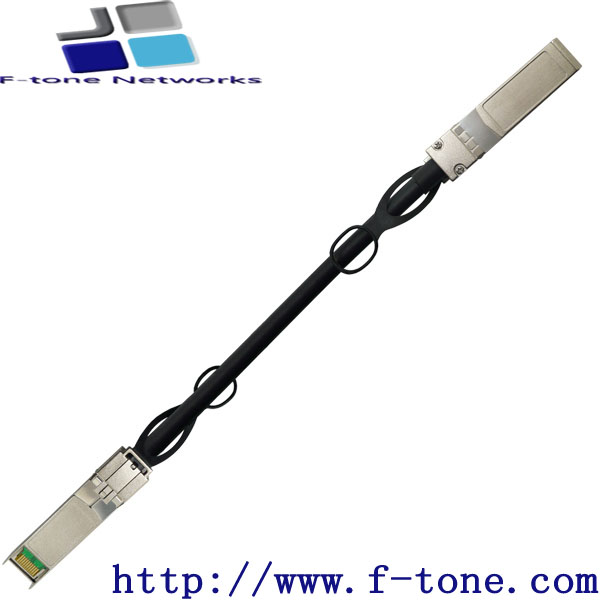

SFP Cables

SFP+ Direct Attach Cables , 1m、3m、5m、7m、10m Reach

Features

  1. Support for multi-gigabit data rates up to 10.5Gbps
  2. Data rates backward compatible to 1Gbps
  3. Support for 1x, 2x, 4x and 8x Fibre Channel data rates
  4. Hot-pluggable SFP 20PIN footprint
  5. I/O Connector designed for high speed differential signal applications
  6. Improved Pluggable FormFactor(IPF) compliant for enhanced EMI/EMC performance
  7. Low Power Consumption < 0.5W
  8. Power Supply :+3.3V
  9. Compatible to SFP+
  10. Temperature Range: 0~ 70 °C
  11. RoHS Compatible

Applications

  1. High capacity I/O in Storage Area Networks, Network Attached Storage, and Storage Servers
  2. Switched fabric I/O such as ultra high bandwidth switches and routers
  3. Data center cabling infrastructure
  4. High density connections between networking equipment

Product Description

The SFP+ cable assemblies are high performance, cost effective I/O solutions for 10Gb Ethernet and 10G fibre Channel applications. SFP+ copper modules allow hardware manufactures to achieve high port density, configurability and utilization at a very low cast and reduced power budget. The high speed cable assemblies meet and exceed Gigabit Ethernet and Fibre Channel industry standard requirements for performance and reliability..

Recommended Operating Conditions

Parameter

Symbol

Min

Typical

Max

Unit

Storage Ambient Temperature



-40



+85

°C

Operating Case Temperature

Tc

0



+70

°C

Power Supply Voltage

VCC3

3.14

3.3

3.47

V

Power Dissipation

PD



0.5

W

Systems

Performance

10.5 Gpbs line speed, full duplex

Bit error rate: better than 10E-12

Media

Hot-pluggable, industry-standard Small Form-Factor

Pluggable(SFP+) copper cable, available as 1m,3m or 5m.

Operating parameters

Supply voltage: 3.3V

Power consumption(per end): max 0.5W

Supported Length

1m, 3m, or 5m typical & customer specific requirements

Pin Descriptions

Pin

Logic

Symbol

Name/Description

Notes

1


VeeT
Transmitter Ground


2

LV-TTL-O

TX_Fault

N/A

1

3

LV-TTL-I

TX_DIS

Transmitter Disable

2

4

LV-TTL-I/O

SDA

Tow Wire Serial Data



5

LV-TTL-I

SCL

Tow Wire Serial Clock



6



MOD_DEF0

Module present, connect to VeeT



7

LV-TTL-I

RS0

N/A

1

8

LV-TTL-O

LOS

LOS of Signal

2

9

LV-TTL-I

RS1

N/A

1

10



VeeR

Reciever Ground



11



VeeR

Reciever Ground



12

CML-O

RD-

Reciever Data Inverted



13

CML-O

RD+

Reciever Data Non-Inverted



14



VeeR

Reciever Ground



15



VccR

Reciever Supply 3.3V



16



VccT

Transmitter Supply 3.3V



17



VeeT

Transmitter Ground



18

CML-I

TD+

Transmitter Data Non-Inverted



19

CML_I

TD-

Transmitter Data Inverted



20



VeeT

Transmitter Ground



1. Signals not supported in SFP+ Copper pulled-down   to VeeT with 30K ohms resistor

2. Passive cable assemblies do not support LOS and TX_DIS

Ordering information

Part Number

Product Description

SFP-10GPC-X

SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m 10m 0ºC ~ +70ºC

SFP-10GPC-XI

SFP+ Direct Attach (10GSFP+Cu), 1m, 3m, 5m, 7m 10m -40ºC ~ +85ºC
