10Gb/s Copper SFP Transceiver

Description
FTCS-10G-Txx Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet standards as specified in IEEE STD 802.3an. The 10GBASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.
The FTCS-10G-Txx is compliant with the 10G BASE-T/1000Base-T/100BASE-T, Standards as specified in IEEE STD 802.3an, 802.3ab and 802.3au.

Features
● Support 10GBASE-T Operation in Host Systems
● Hot-pluggable SFP Footprint
● Up to 30m using Cat 6a/7 Cable
● No support TX_ disable and with Link function
● Compliant with SFF-8431 and SFF-8432 MSA
● Low power dissipation(1.2W typical)
● I2C 2-Wire Interface DDM
● Fully Metallic Enclosure for Low EMI
● Compliant with IEEE 802.3az Compliant
● Single + 3.3V Power Supply
● Compact RJ-45 connector assembly
● RoHS-10 compliant and lead-free
● Operating case temperature
      Commercial: 0 ~ +70℃

Applications
● 10G BASE-T IEEE 802.3an
● 5G MGBASE-T
● 2.5G MGBASE-T
● 1000BASE-T IEEE802.3ab
● 100BASE-T IEEE802.3au

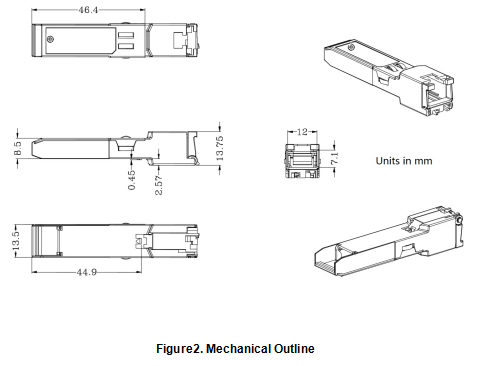

Outline Specification

Ordering Information

注：本产品有全国产化型号可选

本产品为SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
