10Gbps 2km SFP+ Optical Transceiver
Description
10Gbps 2km SFP+ Optical Transceiver
Product description
This 1310 nm FP 10Gigabit SFP+ transceiver is designed to transmit and receive optical data over single mode optical fiber for link length 2km.The SFP+ 2km module electrical interface is compliant to SFI electrical specifications. The transmitter input and receiver output impedance is 100 Ohms differential. Data lines are internally AC coupled. The module provides differential termination and reduce differential to common mode conversion for quality signal termination and low EMI. SFI typically operates over 200 mm of improved FR4 material or up to about 150mmof standard FR4 with one connector.
Features
● Optical interface compliant to IEEE 802.3ae 10GBASE-LR
● Electrical interface compliant to SFF-8431
● Hot Pluggable
● 1310nm FP transmitter, PIN photo-detector
● Low power consumption
● Applicable for 2km SMF connection
● All-metal housing for superior EMI performance
● Advanced firmware allow customer system encryption information to be stored in transceiver
● Cost effective SFP+ solution, enables higher port densities and greater bandwidth
● RoHS6 compliant (lead free)
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 10GBASE-LR at 10.3125Gbps
● Other optical links

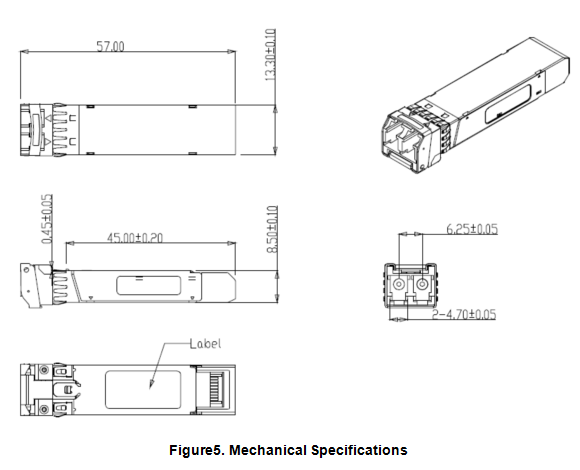

Outline Specification
Ordering Information
|
Part Number |
Product Description |
|
FTCS-131X-02D |
SFP+, 1310nm FP, 10Gbps, 2km, 0ºC ~ +70ºC |
|
FTCS-131X-02DI |
SFP+, 1310nm FP, 10Gbps, 2km, -40 ~ +85℃ |
注：本产品有全国产化型号可选
本产品为SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
