FEATURES
● Surface mount I/O pins for high speed signal integrity
● All metal body, solder or screw mount options
● Industrial Temp range, vibration tolerant design
● 850 nm VCSEL Laser,PIN photo-detector Receiver
● 2-Fiber MiniSFF LC Transceiver
● Distance up to 300 m
● Single 3.3V Power Supply
● Operating case temperature:
FT-95-85RCxx1X-02D : 0℃~+70℃
FT-95-85RCxx1X-02DI : -40℃~+85℃
APPLICATIONS
● 10GBASE-LR/LW 10G Ethernet
AbsoluteMaximumRatings |
|||||
Parameter |
Symbol |
Min. |
Max. |
Units |
Note |
StorageTemperature |
Ts |
-40 |
85 |
℃ |
- |
PowerSupplyVoltage |
Vcc |
-0.5 |
4 |
V |
- |
SolderingTemperature |
- |
- |
260 |
℃ |
10 seconds on leads only |
InputVoltage |
Vin |
GND |
Vcc |
V |
- |
RecommendedOperatingConditions |
|||||
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
PowerSupplyVoltage |
Vcc |
3.1 |
3.3 |
3.5 |
V |
OperatingTemperature |
Industrial |
-40 |
- |
85 |
℃ |
Standard |
0 |
- |
70 |
℃ |
|
DataRate |
- |
- |
10.3125 |
- |
Gbps |
PowerSupplyCurrent |
Icc |
- |
- |
300 |
mA |
TransmitterSpecifications(3.1V<Vcc<3.5V) |
|||||
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Optical |
|||||
OpticalTransmitPower |
Po |
-7 |
- |
0 |
dBm |
Optical Center Wavelength |
λC |
830 |
850 |
860 |
nm |
OutputSpectrumWidth |
Δλ |
- |
- |
0.85 |
nm(RMS) |
Side Mode Suppression Ratio |
SMSR |
30 |
- |
|
dB |
ExtinctionRatio |
ER |
3 |
- |
- |
dB |
Electrical |
|||||
DifferentialInputVoltage |
VIH-VIL |
100 |
- |
1200 |
mV |
ReceiverSpecifications(3.1V<Vcc<3.5V) |
|||||
Parameter |
Symbol |
Min. |
Typ. |
Max. |
Units |
Optical |
|||||
MinimumInputPower (Sensitivity) |
Sen |
- |
- |
-14.4 |
dBm |
MaximumInputPower(Saturation) |
PMAX |
+0.5 |
- |
- |
dBm |
SignalDetect--Asserted |
Pa |
- |
- |
-15 |
dBm |
SignalDetect--Deasserted |
Pd |
-30 |
- |
- |
dBm |
SignalDetect--Hysteresis |
Phys |
0.5 |
- |
- |
dB |
WavelengthofOperation |
λ |
1100 |
|
1620 |
nm |
Electrical |
|||||
Differential Output Voltage |
VOH–VOL |
300 |
- |
1000 |
mV |
Digital Diagnostic Memory Map
Pins Assignment
PIN No. |
Name |
Function |
Voltage Level |
1 |
TD+ |
Data IN+ |
CML |
2 |
VEETX |
Transmitter GND |
N/A |
3 |
TD- |
Data IN- |
CML |
4 |
VCCTX |
Transmitter VCC |
N/A |
5 |
SDA |
The data line of two wire serial interface |
OpenDrain |
6 |
SCL |
The clock line of two wire serial interface |
Open Drain |
7 |
RD+ |
Data OUT+ |
CML |
8 |
VCCRX |
Receiver VCC |
N/A |
9 |
RD- |
Data OUT- |
CML |
10 |
VEERX |
Receiver GND |
N/A |
Recommended Circuit
Notes:
1) L1 and L2 = MuRata BLM21A601S or equivalent (600Ω at 100CGz or better).
2) Route the differential pairs (TX +/- and RX +/-) together using 100Ω impedance matched traces.
3) Use separate power supply filtering for VCCT and VCCR, as shown.

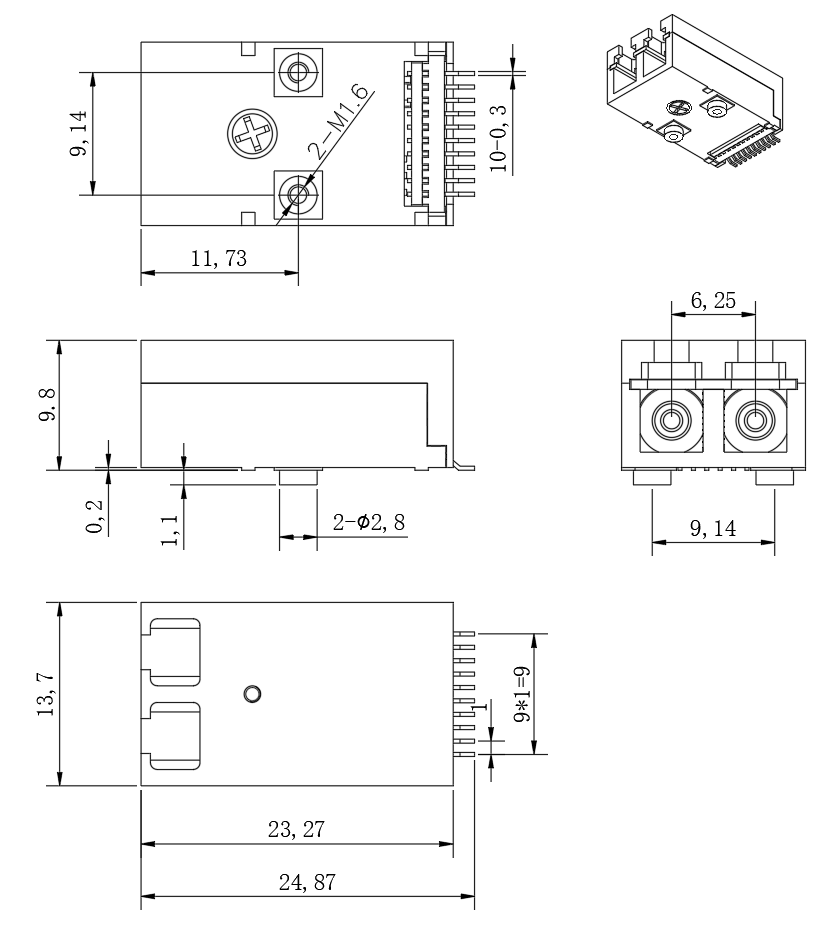

Outline Specification
NOTE: Unspecified tolerance:± 0.25mm

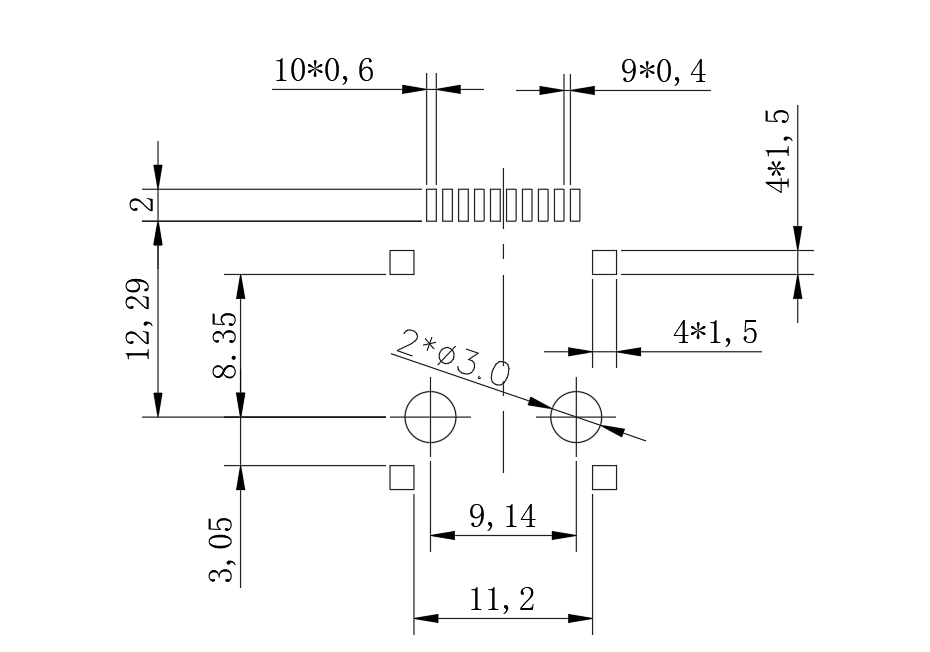

Recommended PCB Layout
NOTE: Unspecified tolerance:± 0.25mm

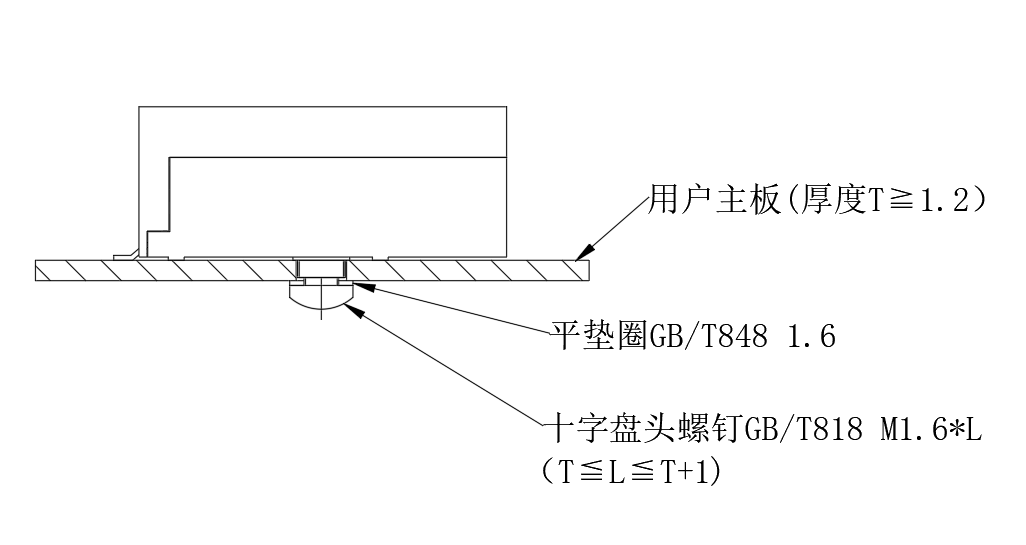

Installation Diagram
Ordering Information
P/No. |
Package |
Bit Rate (Gb/s) |
Dist. (m) |
TX Wavelength (nm) |
RX Wavelength (nm) |
TX Power (dBm) |
RX Sens (dBm) |
Volt. (V) |
Temp. (℃) |
FT-95-85RCxx1X-02D |
LC |
10 |
300 |
850 |
1100~1620 |
-7 to0 |
-14.4 |
3.3 |
0~70 |
FT-95-85RCxx1X-02DI |
LC |
10 |
300 |
850 |
1100~1620 |
-7 to0 |
-14.4 |
3.3 |
-40~85 |
