10Gb/s SFP+ CWDM 10km 光模块
Description
F-tone Networks’FTCS-Cxx1X-10Dxx SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 10km over single mode fiber. The module consists of CWDM DFB Laser, PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472.
FTCS-Cxx1X-10Dxx transceivers provide a unique enhanced digital diagnostic monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, and received optical power and transceiver supply voltage. It also defines a sophisticated system of alarm and warning flags, which alerts end-users when particular operating parameters are outside of a factory set normal range.
The SFP+ MSA defines a 256-byte memory map in EEPROM that is accessible over a 2-wire serial interface at the 8 bit address 1010000X (A0h). The digital diagnostic monitoring interface makes use of the 8 bit address 1010001X (A2h), so the originally defined serial ID memory map remains unchanged.
Features
● Up to 11.3Gb/s data links
● CWDM DFB transmitter and PIN receiver
● Up to 10km on 9/125µm SMF
● Hot-pluggable SFP+ footprint
● Duplex LC/UPC type pluggable optical interface
● RoHS-10 compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF+MSA and SFF-8472
● Metal enclosure, for lower EMI
● Meet ESD requirements, resist 8KV direct contact voltage
● Case operating temperature
Commercial: 0 ~+70℃
Applications
● 10GBASE-LR/LW & 10G Ethernet
● SDH STM64
● Other Optical Links

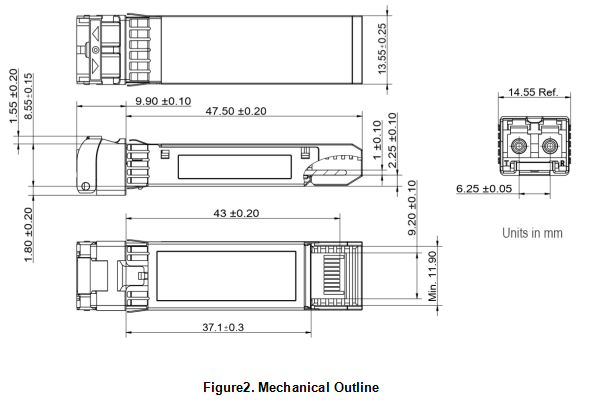

Mechanical Specifications (Unit: mm)
Part Number Ordering Information
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance(km) |
Temperature (℃) (Operating Case) |
|
FTCS-Cxx1X-10D |
10.3125 |
Refer to wavelength selection |
10km SMF |
0~70 commercial |
|
FTCS-Cxx1X-10DI |
10.3125 |
Refer to wavelength selection |
10km SMF |
-40~85 Industrial |
FTCS-Cxx1X-10Dxx Wavelength List:
|
Wavelength |
xx |
Clasp Color Code |
|
1470 |
H |
Gray |
|
1490 |
4 |
Purple |
|
1510 |
I |
Blue |
|
1530 |
J |
Green |
|
1550 |
5 |
Yellow |
|
1570 |
K |
Orange |
|
1590 |
L |
Red |
|
1610 |
M |
Brown |
注：本产品有全国产化型号可选
本产品为SFP+ CWDM系列光模块，如有需要，请联系我们。
