10Mb/s 单模双发射光模块

特点：
● SC/FC/ST或尾纤型光接口，单模双发射光模块
● +3.3V /+5V供电
● 接口电平兼容标准TTL电平和CMOS电平
● 标准1×9管脚封装
● 发射器件可选用1310nm LD
● 极低功耗设计，满足特殊要求
● 传输速率低至直流，上限速率可选，最高可达10Mb/s
Feature：
● SC/FC/ST receptacle optical interface and pigtail optical interface
● Single-mode Double emission fibers optical transceiver
● Standard +3.3V/ or +5V Power Supply
● Standard TTL data output with signal detect indication, compatible with CMOS level
● Standard1×9 package
● Transmit as MQW 1310nm or 1550nm LD
● Super low power consumption, applied to some special requirement
● Optional transmission bit rate with down to 0bps and up to 10Mbps

参数：Specification

极限值
Absolute Maximum Ratings

管脚定义
Pin Connections

外形尺寸及接口定义
Dimension and optical interface

双发SC型接口
Double emission SC optical interface

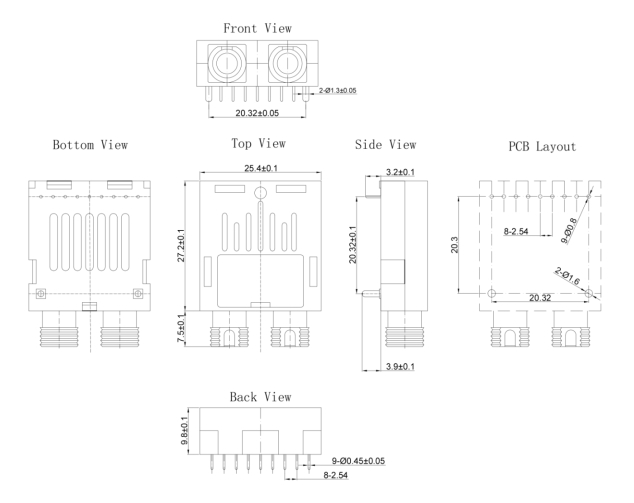

双发 FC 型接口（工业级）
Double emission FC optical interface

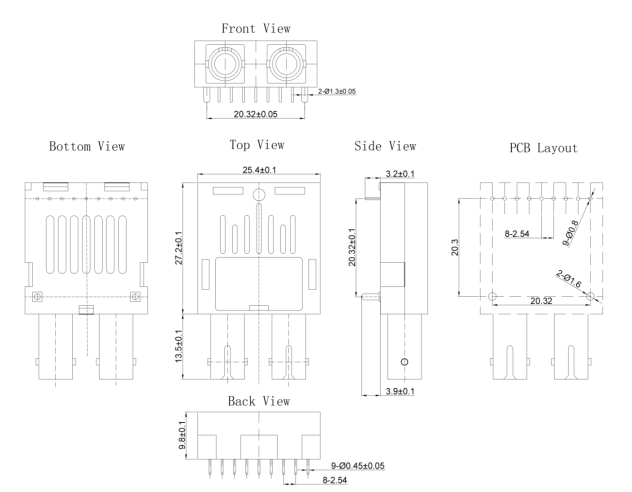

双发ST型接口（工业级）
Double emission ST optical interface

选型Ordering information

备注：“GC”，表示全国产。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
