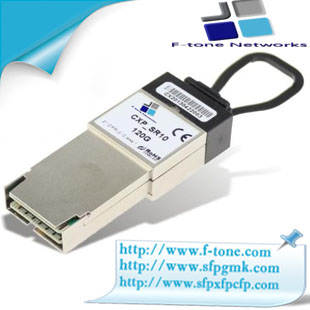

150Gbps-12channel CXP Transceiver
Specifications
- 产品型号: CXP-150XX
- 兼容品牌: 全系列
- 封装类型: CXP
- 传输速率: 12×12.5G
- 传输距离: Avago VCSEL Array Transmitter/PIN Array Receiver
- 发射波长: Avago VCSEL Array Transmitter
- 接收波长: Avago PIN Array Receiver
- 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
- 数字诊断: 带DDM
- 接收灵敏度: 600m
- 接收灵敏度: 600m
Description
CXP-150G-XX
150-Gbps 12-channel CXP Pluggable Optical Transceiver Module
- View Data Sheet (PDF)
Lifecycle status:
Active
Features [-]
- Compliant to SFF-8642: Mini Multilane Series: Shielded Integrated Connector, and InfiniBand Architecture Specification V2 R1.3 for CXP Interface
- Multi-rate Capability from 11 to 12.5 Gbps per Channel with 64b/66b encoded data for proprietary application
- High Channel Capacity: 150 Gbps per Module
- Hot Pluggable for Easy System Installation
- Link Distance up to 50 m using OM3 Fiber and 65 m using OM4 Fiber
- 0 to +70 °C Case Temperature Operating Range
- Low Power Dissipation: < 3.5 W
- Proven High Reliability 850nm Technology: F-tone VCSEL Array Transmitter and F-tone PIN Array Receiver
- Two Wire Serial (TWS) Interface with Maskable Interrupt for Expanded Functionality Including:
- Individual Channel Functions: Channel/Output Disable, Squelch Disable, and Lane Polarity Inversion
- Diagnostic Monitoring Functions: Module Temperature and Supply Voltages, per Channel Laser Current and Laser Power, and Input Receiver Power
- Status per Channel: Tx Fault, Electrical (Transmitter) and Pptical (Receiver) LOS, and Alarm Flags
- Programmable Equalization and De-Emphasis Settings for Optimizing System Performance
- Standard 24 Lane Optical Fiber with MTP® (MPO) Optical Connector for High Density and Thin, Light Weight Cable Management
Applications [-]
- 12×12.5G Proprietary Interconnects
- Data Aggregation, Backplane and Proprietary Protocol and High Density Applications
- Datacom/Telecom Switch & Router Connections
- High Performance Computing Interconnects
Documents [-]
Data Sheets & Technical Specifications
- Data Sheet - CXP-150G-XX, 12 Channel × 12.5 Gbps Transceiver CXP Pluggable, Parallel Fiber-Optics Module (852 KB,PDF)
Related Products
CFP-100G-SR10
- Transmission data rate up to 11.2Gbit/s per channel
- CFP MSA compliant
- Compliant to IEEE 802.3ba specification for 100GBASE-SR10 links
- Up to 11.2 Gbps per channel bandwidth,
- OTU4 compatible
- 10 channels 850nm VCSEL array
- 10 channels PIN photo detector array
- OM3 Multimode Fiber cable of up to 300m and OM4 Multimode Fiber cable of up to 400m
- MDIO digital diagnostic and control capabilities.
- compliant to CFP MSA Management Interface Specification, Draft 1.4
- TX input and RX output CDR retiming
- Hot pluggable electrical interface
- Power class 1 (<8W max)
- Operating case temperature 0°C to +70°C
- 3.3V power supply
- RoHS 6 compliant(lead free)
CFP4 Optical Transceiver
This CFP Multi-Source Agreement (MSA) defines the CFP4 form factor of an optical transceiver which can support 40Gbit/s and 100Gbit/s interfaces for Ethernet, ITU-T OTN and other applications. Specifications provided in this document are given as a “delta” to the CFP MSA Hardware Specification Rev.1.4 or the CFP2 Hardware Specification Rev. 1.0.
CFP2-100G-LR4
10km OTU4/100G Ethernet CFP2 Optical Transceiver Module (CFP2-100G-LR4),F-tone’s CFP2-100G-LR4 100G CFP2 transceiver modules are designed for use in 100 Gigabit Ethernet and 4x28G OTN client interfaces over single mode fiber. They are compliant with the CFP MSA, IEEE 802.3ba 100GBASE-LR4 and OTU4 4I1-9D1F requirements specified in ITU-T Recommendations G.959.1/G.709 and Supplement 39 (G.sup39).
SNAP12 Parallel Receiver Module
SNAP12 Parallel Receiver Module - Commercial Temperature (SNAP12-RX-X):F-tone's SNAP12 receiver module is designed to be used in links of up to 32Gb/s over multimode fiber. They are RoHS-6 compliant and lead-free per Directive 2002/95/EC and F-tone Application Note FT038.
SNAP12 Parallel Transmitter Module
SNAP12 Parallel Transmitter Module:F-tone's SNAP12 transmitter module is designed to be used in links of up to 32Gb/s over multimode fiber. They are RoHS-6 compliant and lead-free per Directive 2002/95/EC and F-tone Application Note an38.
100Gbps 10channel CXP Optical Transceiver
The F-tone CXP-100G-150XX is a 10-channel CXP pluggable optical transceiver module for 100 Gigabit Ethernet applications. The transceiver is optimized for high-speed, short-range data communications. It has 10 data lanes in each direction with greater than 100 Gbps of aggregate bandwidth. Each lane can operate at 10.3125 Gbps up to 100 meters using OM3 fiber and 150 meters using OM4 fiber.
