1550nm Pigtailed Photodiode
Description

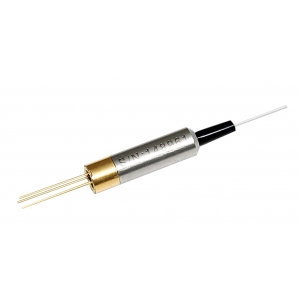

1550nm Pigtailed Photodiode
The Fiber Pigtailed Photodiode is a coaxial package photoelectrical component. It features high responsivity, low dark current and good temperature performance over a wide wavelength range. It can be applied for channel power monitoring in DWDM system, in-line optical network switching/protection monitoring (OLP), re-configurable optical add/drop multiplexer (OADM) and gain attenuation monitoring in EDFA, etc.
|
Specifications |
|||
|
Parameter |
Unit |
Value |
|
|
Center Wavelength (λc) |
nm |
1310 |
1550 |
|
Operating Wavelength Range (λop) |
nm |
λc ± 50 nm |
|
|
Min. Responsivity |
A/W |
0.75 |
0.80 |
|
Min. Return Loss |
dB |
45 |
|
|
Dark Current (@ 70 ℃,-5 V bias) |
nA |
8 |
|
|
2 |
|||
|
Fiber Type |
SMF-28 fiber |
||
|
Operating Temperature |
℃ |
0 to +70 |
|
|
Storage Temperature |
℃ |
-40 to +85 |
|
|
Soldering Temperature (Over 2 mm from head, less than 5 s) |
℃ |
≤ 260 |
|
