155Mbps 2×5 SFF BIDI Transceiver Module

Product Description
F-tone’s FTAF-B1X03-XX series of transceiver modules are the perfect solution for high-speed communication networks. FTAF-B1X03-XX series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
F-tone’s FTAF-B1X03-XX Small Form Factor (SFF) transceivers comply with the 2×5 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). They also comply with SONET OC-3 SR-1/IR-1 (SDH STM I-1/S-1.1) standards2.
The family provides a uniform form factor for a wide variety of standard connections to transmission media. The converters can be inserted or removed from a host chassis without removing power from the host system.
F-tone’s FTAF-B1X03-XX SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.

Product Features
● 1310nm or 1550nm wavelength Laser Transmitter
● 20 Km with 9/125µm SM
● Single 3.3V power supply
● Standard 2×5 pin footprint (MSA Compliant)
● Operating Temperature Range
● Single SC connector
● LVPECL compatible data input/output interface
● LVTTL receiver signal-detected indication
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF)
● Transceivers Multi-Sourcing Agreement (MSA)

Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

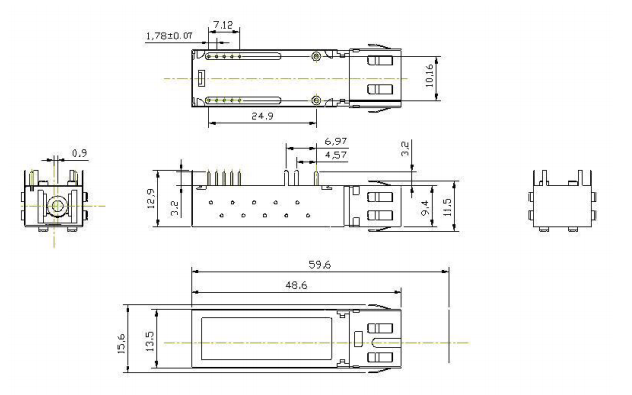

Mechanical Specifications

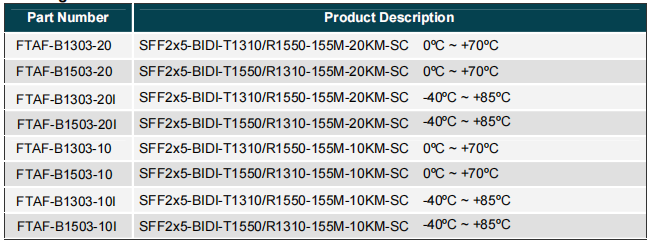

Ordering information

注：本产品有全国产化型号可选

本产品为FTAF系列，仅展示部分参数，如有需要，请联系我们。
