155Mbps CWDM 1 x 9 SM Transceiver Module
Description
155Mbps CWDM 1 x 9 SM Transceiver Module
Product Description
F-tone’s FTTR-Cxx03-xxxx series of transceiver modules are the perfect solution for high-speed communication networks.The transceiver modules support data rates up to 155Mbps. These modules are fully compliant with the Multi-sourced 1x9 protocol.
The transceiver module supplies the Differential PECL of 3.3V, 5V, 3.3V/5.0V Voltage and provides the system designer with products to implement a range of FDDI and ATM designs at the 100Mbps/155Mbps rate and SONET/OC-3, SDH/STM-1 for telecommunications.Business level transceiver module which operating at 0℃ to 70℃.FTTR-Cxx03-xxxx series of transceiver modules can choose 8 kinds of Wavelength.
Product Features
● Multi-sourced 1 x 9 pin packaged
● 1450nm~1610nm DFB Laser Transmitter
● SC /FC/ST single receptacle or Pigtail SC/PC, ST/PC, FC/PC optional
● Up to 120Km with 9/125μm SMF
● Single 3.3V, 5V, 3.3V/5.0V power supply
● PECL signal input and output
● Wave solderable and washable with process plug inserted
● Tow temperature ranges:
Standard : 0 to +70°C
Industrial : -40 to +85°C
Application
● ATM equipments
● SONET/OC-3、SDH/STM-1 equipments
● 155Mbps Fast Ethernet equipments

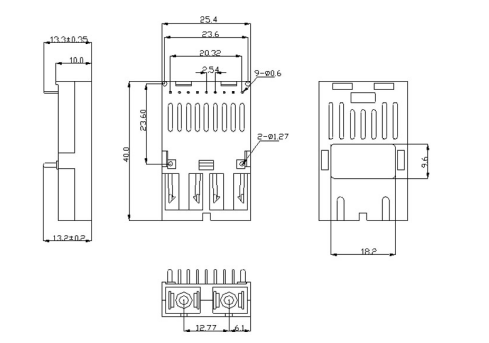

Module Outline Drawing

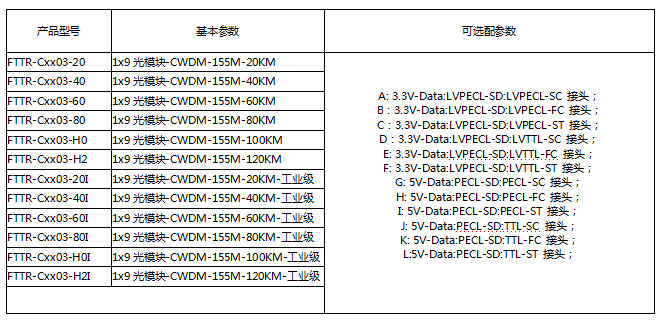

Ordering information
注：本产品有全国产化型号可选
本产品为光模块1x9系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
