155Mbps Single Mode SFP BIDI LC Transceiver (20Km)
Description
155Mbps Single Mode SFP BIDI LC Transceiver (20Km)
FEATURES
● Fiber Bi-Directional SFP Optical Transceiver
● Super High Isolation Between Two Wavelengths
● Hot-Pluggable SFP Footprint LC Optical Transceiver
● Digital diagnostic monitor compatible with SFP-8472
● Distance Up to 20 km
● Single 3.3V Power Supply
● Operating Temperature
FTCS-B1303-20D / FTCS-B1503-20D : 0℃~+70℃
FTCS-B1303-20DI / FTCS-B1503-20DI: -40℃~+85℃
● RoHS Compliant
● Class 1 Laser International Safety Standard
● IEC-60825 Compliant
APPLICATIONS
● Fast Ethernet 100 Mb/s Links
● SONET/SDH Equipment Interconnect

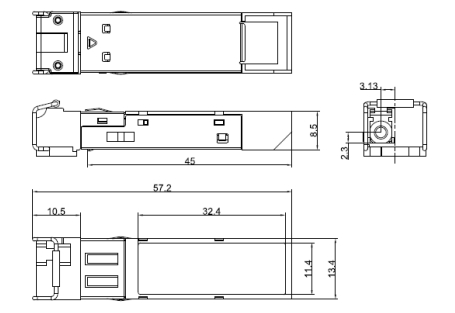

Mechanical Dimensions
Ordering Information
|
P/No. |
Package |
Bit Rate(Mb/s) |
Dist.(km) |
Wavelength(nm) |
Volt.(V) |
TX Power(dBm) |
RXSens(dBm) |
Temp.(℃) |
|
FTCS-B1303-20D |
LC |
155 |
20 |
TX1310FP/RX1550 |
3.3 |
-14 to -3 |
-32 |
0 ~70 |
|
FTCS-B1503-20D |
LC |
155 |
20 |
TX1550FP/RX1310 |
3.3 |
-14 to -3 |
-32 |
0 ~70 |
|
FTCS-B1303-20DI |
LC |
155 |
20 |
TX1310FP/RX1550 |
3.3 |
-14 to -3 |
-32 |
-40 ~85 |
|
FTCS-B1503-20DI |
LC |
155 |
20 |
TX1550FP/RX1310 |
3.3 |
-14 to -3 |
-32 |
-40 ~85 |
注：本产品有全国产化型号可选，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
