The Polarization Beam Combiner/Splitter (PBC/S)can be used either as a polarization beam combiner to combine light beams from two PM input fibers into a single output fiber, or as a polarization beam splitter to split light from an input fiber into two output fibers of orthogonal polarization states. It is widely used in EDFA, raman amplifier, fiber sensor, coherent, telecommunications systems. Polarization mode dispersion compensator.

Features

● Low Insertion Loss
● High Stability and Reliability
● High Reliability&Stability
● High Extinction Ratio
● Epoxy-Free Optical Path
● Cost Effective
● 1 M Jacketed Fiber on Each Leg
● 980, 1064, 1310, 1480, and 1550 nm Operating Wavelengths

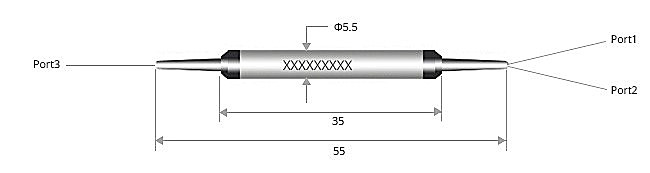

Mechanical Dimensions(mm)

Applications

● EDFA & Raman Amplifier
● Fiber Sensor System
● Polarization Mode Dispersion Compensator
● Polarization Division Mux/Demux
● Fiber Laser System
● R&D Laboratories
● Instruments

Specifications

Note:
*The above specification is without connector.
*For devices with connector,IL will be 0.3dB higher,ER will be 2dB lower and RL will be 5dB lower.
*The PM fiber and the connector key are aligned to the slow axis.
Ordering Information

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
