2×2 磁光开关
Description
2×2 磁光开关
产品描述
2x2 光开关是一种固态光开关,内部没有任何移动组件,是基于法拉第效应实现的。该系列产品利用电磁感应原理和法拉 第旋光效应改变入射光束的偏振态,结合使用双折射偏振分光晶体,使光束传播路径发生改变,从而实现光路切换的功能。
产品特点
● 无移动组件
● 切换速度快
● 极其稳定的锁存模式
● 低功耗
● 极好的稳定性和可靠性
应用范围
● 高速保护
● 系统监控
● 测试测量
● 光纤传感系统

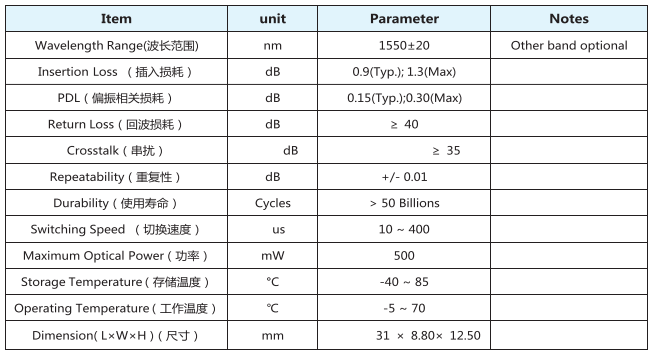

Specifications

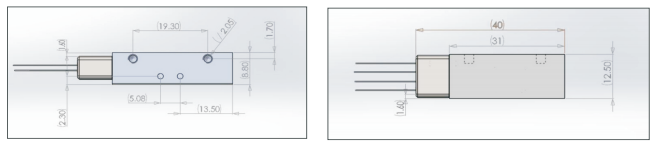

Dimensions Drawing (mm)

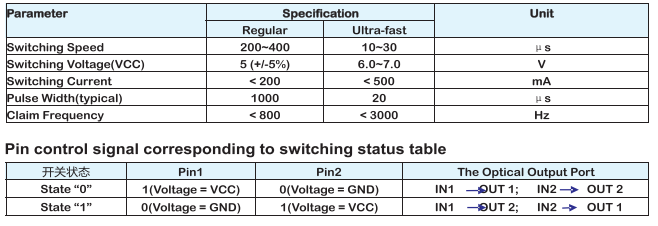

Electrical Specifications

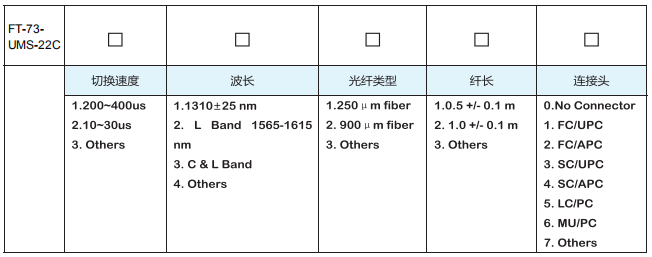

订货信息
Important Notice
