2.5G RJ 10PIN Transceiver Module

Product Description
F-tone Networks’s FTRC-xx24-xx series of transceiver modules are the perfect solution for high -speed communication networks.These transceiver modules support data rates up to 2.5Gbps. The module is fully compliant with Small Form-Factor Transceiver.These transceiver modules provide the system designer with Telecom, Datacom, and other Fibre Channel applications.

Product Features
● DFB Laser Diode Transmitter
● Up to 60 Km on 9/125μm SMF
● 3.3Vpower supply
● LC duplex optical interface
● CML Differential Inputs and CML Outputs and LVTTL signal detect
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)

Application
● Fiber Channel Switch Infrastructure
● STM16 Optical Interface
● SONET / SDH Switch Infrastructure
● Other optic links

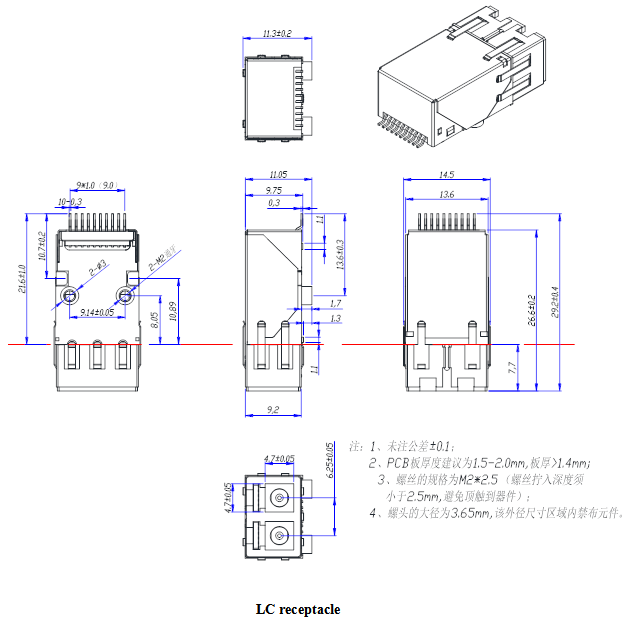

Module Outline Drawing（Units in mm)

Order Information

Note：1.The suffix “-I” denote the industrial level.

本产品为FTRC系列，仅展示部分参数，如有需要，请联系我们。
