2.5Gb/s SFP DWDM 160km
Description

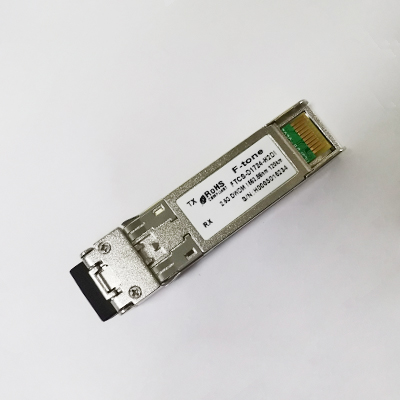

2.5Gb/s SFP DWDM 160km
Features
● Up to 2.5Mb/s data links
● DWDM EML laser transmitter and APD photo-detector
● 100 GHz ITU channel spacing with integrated wavelength locker
● Up to 160km on 9/125µm SMF
● Hot-pluggable SFP footprint
● Duplex LC/UPC type pluggable optical interface
● Low power dissipation
● Metal enclosure, for lower EMI
● RoHS compliant and lead-free
● Support Digital Diagnostic Monitoring interface
● Single +3.3V power supply
● Compliant with SFF-8472
● Case operating temperature:
Commercial: 0 ~ +70oC
Extended: -10 ~ +80oC
Industrial: -40 ~ +85oC
Applications
● SONET/SDH networks
● Gigabit Ethernet
● C Band DWDM networks
● 1xFiber /2xFiber Channel
General Description
F-tone Networks'FTCS-Dxx24-H6Dxx transceivers include an APD photo-detector diode and temperature stabilized DWDM EML transmitter. Digital diagnostic functions are available via an I2C.This module is designed for single mode fiber and operates at a nominal wavelength of 100GHz ITU Grid,C Band DWDM wavelength. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF8472.
The optical output can be disabled by a TTL logic high-level input of Tx Disable,and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
Optical Characteristics
The following optical characteristics are defined over the Recommended Operating Environment unless otherwise specified.
|
Parameter |
Symbol |
Min. |
Typical |
Max |
Unit |
Notes |
|
Transmitter |
||||||
|
Optical Wavelength |
λC |
λc -0.1 |
|
λc +0.1 |
nm |
1 |
|
Center Wavelength Spacing |
|
|
100 |
|
GHz |
|
|
Spectrum Bandwidth(RMS) |
σ |
|
|
1 |
nm |
|
|
Side Mode Suppression Ratio |
SMSR |
30 |
|
|
dB |
|
|
Average Optical Power |
PAVG |
3 |
|
7 |
dBm |
2 |
|
Optical Extinction Ratio |
ER |
8.2 |
|
|
dB |
|
|
Transmitter OFF Output Power |
POff |
|
|
-45 |
dBm |
|
|
Transmitter Eye Mask |
|
Compliant with G.957(class 1 laser safety) |
|
|||
|
Receiver |
||||||
|
Center Wavelength |
λC |
1270 |
|
1610 |
nm |
|
|
Receiver Sensitivity (Average Power) |
Sen. |
|
|
-29 |
dBm |
3 |
|
Input Saturation Power (overload) |
Psat |
-9 |
|
|
dBm |
|
|
LOS Assert |
LOSA |
-41 |
|
|
dB |
4 |
|
LOS De-assert |
LOSD |
|
|
-30 |
dBm |
4 |
|
LOS Hysteresis |
LOSH |
0.5 |
2 |
6 |
dBm |
|
Notes:
1. λc refer to wavelength selection,and corresponds to approximately 0.8 nm
2. Measure at 2^23-1 NRZ PRBS pattern
3. Measured with Light source 1563.86~1528.77nm, ER=8.2dB; BER =<10^-12 @PRBS=2^23-1 NRZ
4. When LOS de-asserted, the RX data+/- output is High-level (fixed).
Part Number Ordering Information
|
Part Number |
Data Rate (Gb/s) |
Wavelength (nm) |
Transmission Distance(km) |
Temperature (oC) (Operating Case) |
|
FTCS-Dxx24-H6D |
2.5 |
Refer to wavelength selection |
160km SMF |
0~70 commercial |
|
FTCS-Dxx24-H6DE |
2.5 |
|
160km SMF |
-10~80 Extended |
|
FTCS-Dxx24-H6DI |
2.5 |
|
160km SMF |
-40~85 Industrial |
