20MHz时钟光传输模块
Description
产品特点
● 置光功率（APC）控制电路，保证光功率稳定输出
● 内置射频信号检测电路，实时检测射频信号大小
● 产品小型化、重量轻、功耗低
● 产品通用性强，互换性好
应用领域
● 模拟信号分配
● 相控阵雷达和远程处理
● 移动天线、微波延迟线和射频信号远程传输系统
● 保密通信

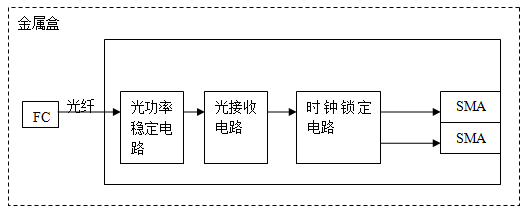

原理框图
技术指标
| 参数 | 典型值 |
| 电源电压 | DC ＋5V |
| 输入输出接口 | SMA-K |
| 前沿抖动 | ≤40ps |
| 相位噪声 | ≤－135dBc/Hz@1KHz |
| 时钟输入输出功率 | 3dBm |
| 工作温度 | －40℃～＋70℃ |
| 贮藏温度 | －45℃～＋85℃ |
订购信息
| 工作波长 | 射频光发射模块 | 射频光接收模块 |
| 1330nm | FT-T20MTA330 | FT-T20MRA |
| 1550nm | FT-T20MTA550 | FT-T20MRA |
注：型号中的“20M”表示工作频点是20MHz，如有其他频点产品需求，请咨询公司设计人员。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
