25G SFP28-DWDM 2Km (FTCS-Dxx25G-02Dxx)
Description
Description
This product is a 25G SFP28 DWDM transceiver designed for optical communication compliant with 25G standard. Its high performance cooled DWDM EML transmitter and high sensitivity PIN receiver provide superior performance for 25G application up to 2km Links.
The product is designed with SFP28 form factor, which is the optical/electrical connection according to the SFP+ Multi-Source Agreement (MSA).
Features
● Hot-pluggable SFP28 form factor
● Supports 25Gb/s aggregate bit rate
● Transmitter: cooled DWDM EML TOSA
● Compliant to ITU-T 694.1
● Receiver: PIN ROSA
● Internal CDR circuits on both receiver and transmitter channels
● 1.5W maximum power dissipation
● Maximum link length of 2Km over SMF
● Duplex LC receptacle
● Single 3.3V power supply
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● 25GBASE-LR Ethernet
● CPRI Option 10
● Support 10G CPRI option 8 by CDR bypass

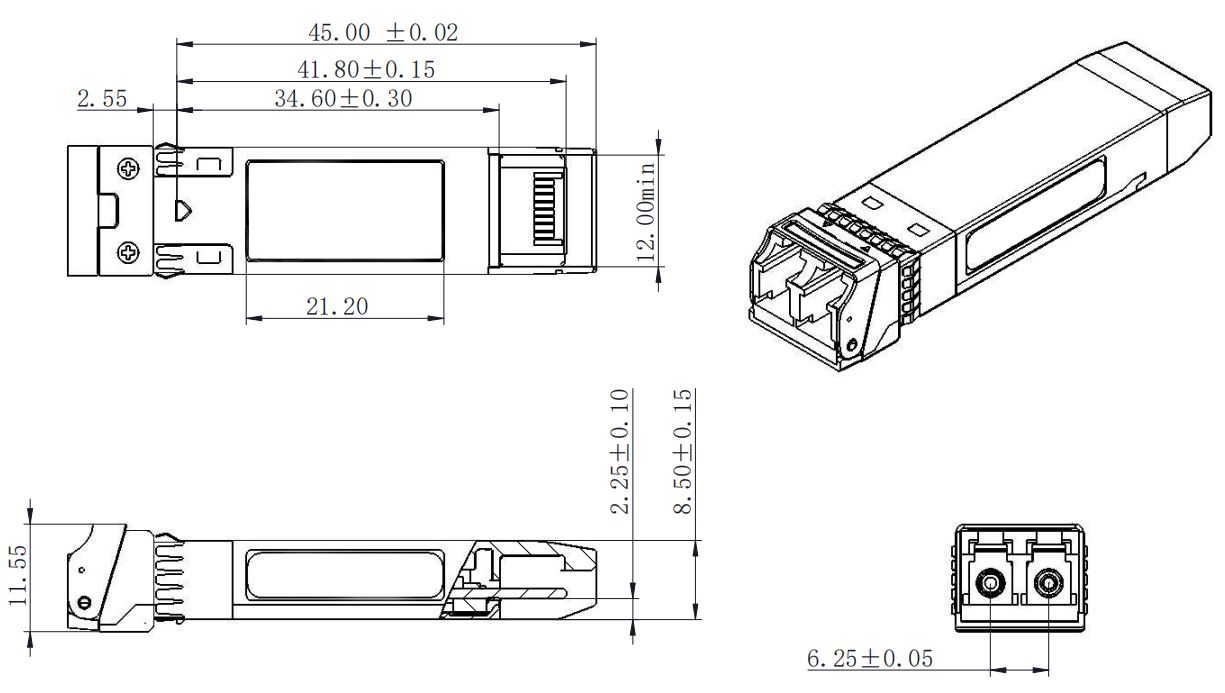

Mechanical Dimensions
Ordering Information
|
Part Number |
Product Description |
|
FTCS-Dxx25G-02D |
25G, SFP28 DWDM, 2km, 0ºC ~ +70ºC xx : DWDM Channel NO.17~61. |
|
FTCS-Dxx25G-02DI |
25G, SFP28 DWDM, 2km, -40ºC ~ +85ºC xx : DWDM Channel NO.17~61. |
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
