3.2Gbps 1X10 Low Profile MiniSFF BIDI Dual Receiver
Description
3.2Gbps 1X10 Low Profile MiniSFF BIDI Dual Receiver
FEATURES
● Low Profile Design - 0.386 inches max. height
● Surface mount I/O pins for high speed signal integrity
● All metal body, solder or screw mount options
● Up to 3.2Gbps data rate
● Support Video pathological pattern for SD-SDI,HD-SDI,3G-SDI.
● Single Fiber Bi-Directional Transceiver
● Super High Isolation Between Two Wavelengths
● Industrial Temp Range, Vibration tolerant design
● RX data squelch on Signal Detect deassert
● Individual (separate) +3.3 V power supply per port
● Industry standard single mode Pigtail receptacle
● Operating Temperature
FTMF-BR131532-02 : 0℃~+70℃
FTMF-BR131532-02I : -40℃~+85℃
APPLICATIONS
● Optic fiber transmission system
● High-density Video Routers

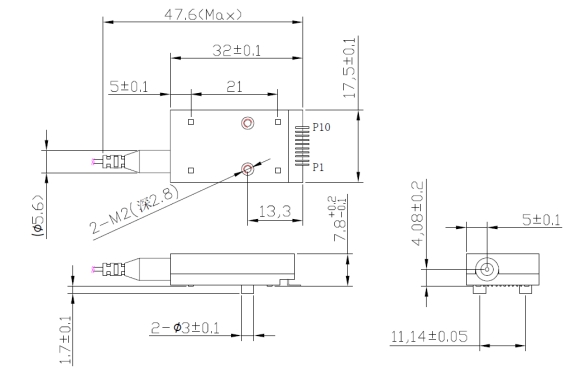

Mechanical Dimensions
Ordering Information
|
P/No. |
Wavelength(nm) |
RX1 Power(dBm) |
RX2 Sens(dBm) |
Bit Rate(Gb/s) |
Dist.(km) |
Volt.(V) |
Temp.(℃) |
|
FTMF-BR131532-02 |
RX1 / 1310nm RX2 / 1550nm |
-17 |
-17 |
3.2 |
2 |
3.3 |
0~70 |
|
FTMF-BR131532-02I |
RX1 / 1310nm RX2 / 1550nm |
-17 |
-17 |
3.2 |
2 |
3.3 |
-40~85 |
注：本产品有全国产化型号可选
本产品为FTMF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
