300Mbps SFP MM Transceiver Module
Description
300Mbps SFP MM Transceiver Module
Product Description
F-tone Networks’s FTCS-M1304-DZ01 series of transceiver modules are the perfect solution for high-speed communication networks.FTCS-M1304-DZ01 series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.F-tone Networks’s FTCS-M1304-DZ01 SFP transceivers support data rates up to 300Mbps. These modules are fully compliant with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA).The family provides a uniform form factor for a wide variety of standard connections to transmission media. The converters can be inserted or removed from a host chassis without removing power from the host system.F-tone Networks’s FTCS-M1304-DZ01 SFP module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm FP Laser Transmitter
● Up to 2 Km with 62.5/125μm MMF
● Single 3.3V power supply
● Hot-Pluggable electrical interface
● LC duplex receptacle
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form-Factor Pluggable (SFP) Transceiver Multi-Source Agreement (MSA) and SFF-8472 v9.3
● Operating case temperature range (Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
Application
● ATM
● Fiber channel
● SONET/SDH
● Fast Ethernet
● Other optic link

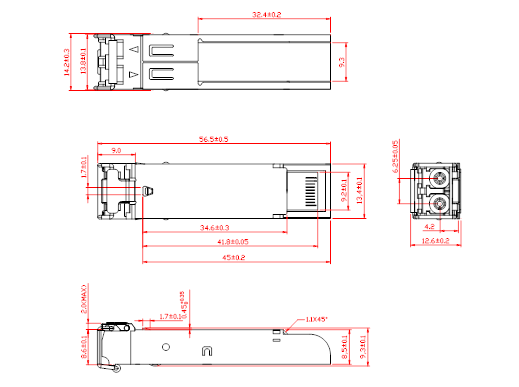

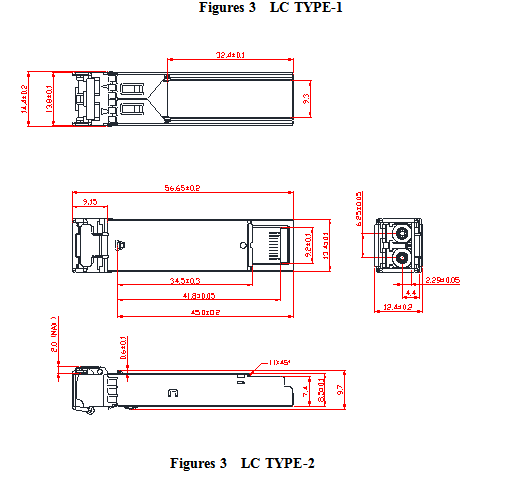

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTCS-M1304-DZ01 |
MM |
1310(FP LD) |
2 |
注：本产品有全国产化型号可选
本产品为SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
