40GHz Analog Photodetector DS
Description
40GHz Analog Photodetector DS
Features
● Small size package
● High responsivity: typical 0.75 mA/mW@ 1550nm
● Wide operating analog frequency up to 40GHz
● Wide wavelength range from 1100nm to 1620nm
● Matched to 50Ω
● K type RF connector
Applications
● Antenna remoting
● Satellite Communications
● Wireless signal transport
● Distributed antenna system
● High speed test and measurement
● Video Signal Distribution in HFC and FTTx Nodes

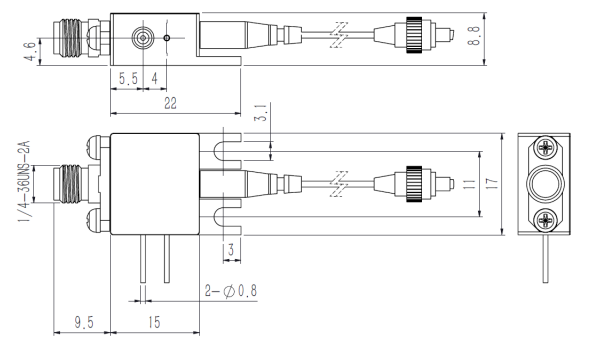

Mechanical (unit: mm)

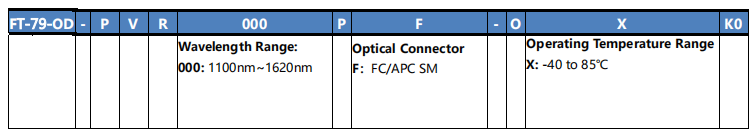

Ordering Information
注：本产品有全国产化型号可选
本产品为FT-79系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
