40KM DWDM SFP+ 光模块
Description
40KM DWDM SFP+ 光模块
Description
F-tone SFP+ER DWDM Transceiver is a “Limiting module”, designed for 10GBASE-ER, and 2G/4G/ 8G/10G Fiber- Channel applications.The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a PIN photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
Features
● Compliant with SFF-8431,SFF-8432 and IEE802.3ae
● 10GBASE-ER, and 2G/4G/ 8G/10G Fiber Channel applications.
● Suitable for use in 100GHz channel spacing DWDM systems
● Cooled EML transmitter and PIN receiver
● link length up to 40km
● Low Power Dissipation 1.5W Maximum
● Operating Case Temperature:
Standard : 0 to +70°C
Industrial : -40 to +85°C
● Single 3.3V power supply
● Diagnostic Performance Monitoring of module temperature, supply Voltages, laser bias current, transmit optical power, receive optical power
● For the OBSAI application, the rates are 6.144Gb/s, 3.072 Gb/s, 1.536 Gb/s and 0.768 Gb/s.
● For the CPRI application, the rates are 6.144Gb/s, 3.072 Gb/s, 2.4576 Gb/s, 1.2288 Gb/s, 0.6144 Gb/s.
● RoHS6 compliant and lead free
Applications
● 10GBASE-ER (with/without FEC)
● 10G Fiber Channel

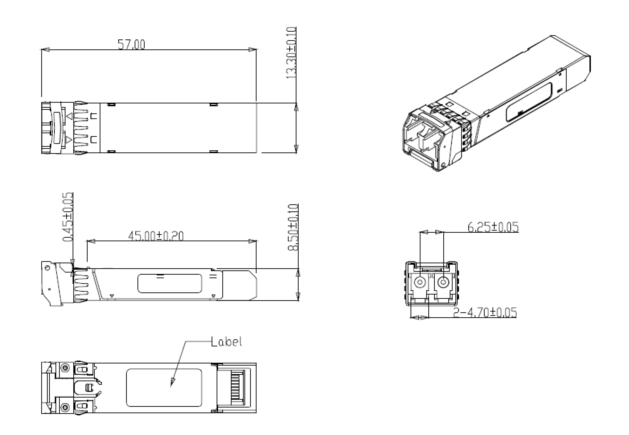

Mechanical Dimensions
Part Number Ordering Information
|
Part Number |
Product Description |
|
FTCS-DXX1X-40D |
XX= ITU Grid 17~61, 10Gbps, DWDM SFP+ 40km, 0ºC ~ +70ºC |
|
FTCS-DXX1X-40DI |
XX= ITU Grid 17~61, 10Gbps, DWDM SFP+ 40km, -40ºC ~ +85ºC |
注：本产品有全国产化型号可选
本产品为DWDM SFP+系列光模块，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
