50M SFP Dual Receiver Module
Description
50M SFP Dual Receiver Module
Product Description
F-tone Networks’s FTCS-2R85L2A-02I Dual Receiver module is the perfect solution for low-speed communication networks.These product is dual-channel optical recevier modules.The receiver module Supportes data rates up to 50Mbps. The module is compliant with Small Form-Factor Pluggable (SFP) Transceiver footprint..The Receiver module provides the system designer with products to RS232/RS485/RS422 receptacle fiber transmission.
Product Features
● PIN-TIA receiver
● Up to 2Km on 62.5/125μm MMF
● 3.3V power supply
● LC duplex optical interface
● LVTTL Output and LVTTL signal detect
● Without Digital diagnostic monitoring
● Class 1 Laser International Safety Standard IEC 825 Compliant
● Operating case temperature range (Industrial： -40°C to +85°C)
Application
● RS232/RS485/RS422 receptacle fiber transmission
● Other optic link

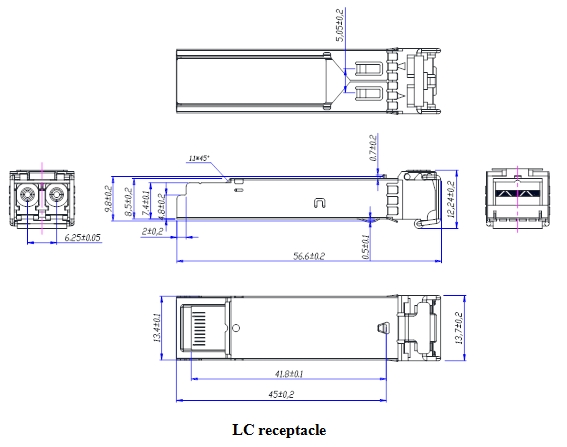

Module Outline Drawing（Units in mm)
Order Information
|
Type |
Fiber Type |
Wavelength(nm) |
Fiber Length(Km) |
|
FTCS-2R85L2A-02I |
MM |
770~860 |
2 |
注：本产品有全国产化型号可选
本产品为SFP系列光模块，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
