622Mbps 2×10 SFF SM DDM Transceiver Module
Description
622Mbps 2×10 SFF SM DDM Transceiver Module
Product Description
FTBF-xx06-xxx series of transceiver modules are the perfect solution for high-speed communication networks.FTBF-xx06-xxx series modules provide reliability, robust and high performance to Telecom, Datacom, and other data communication applications.
FTBF-xx06-xxx Small Form Factor (SFF) transceivers comply with the 2×10 standard package defined by the Small Form Factor Multi-Sourcing Agreement (MSA). The transceivers are RoHS compliant and lead-free per Directive 2002/95/EC5.
FTBF-xx06-xxx SFF module has been designed to provide good immunity to RF electromagnetic fields and excellent EMC/EMI performance.
Product Features
● 1310nm or 1550nm wavelength Laser Transmitter
● Up to 60Km on 9/125μm SMF
● Single 3.3V power supply
● Digital diagnostic monitoring
● Standard 2×10 pin footprint (MSA Compliant)
● Operating case temperature range(Standard：0 to +70℃) or (Industrial： -40°C to +85°C)
● Duplex LC connector
● LVPECL Signal Input / Output
● TTL Signal Detect or LVPECL Signal Detect
● Low power dissipation
● Excellent EMI and ESD protection
● Compliant with Small Form Factor (SFF) Transceivers Multi-Sourcing Agreement (MSA)
Application
● ATM
● Fiber channel
● Gigabit Ethernet
● Fast Ethernet
● Other optic link

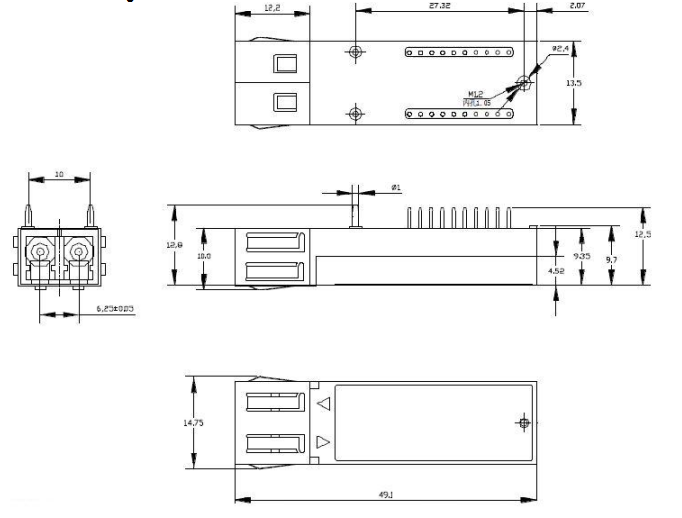

Mechanical Specifications
Ordering information
|
PN |
Description |
|
FTBF-1306-20 |
SFF2x10-SM1310-622M-20KM-商业级(0~70°C) |
|
FTBF-1306-20I |
SFF2x10-SM1310-622M-20KM-工业级(-40~85°C) |
|
FTBF-1306-40 |
SFF2x10-SM1310-622M-40KM-商业级(0~70°C) |
|
FTBF-1306-40I |
SFF2x10-SM1310-622M-40KM-工业级(-40~85°C) |
|
FTBF-1506-20 |
SFF2x10-SM1550-622M-20KM-商业级(0~70°C) |
|
FTBF-1506-20I |
SFF2x10-SM1550-622M-20KM-工业级(-40~85°C) |
|
FTBF-1506-40 |
SFF2x10-SM1550-622M-40KM-商业级(0~70°C) |
|
FTBF-1506-40I |
SFF2x10-SM1550-622M-40KM-工业级(-40~85°C) |
|
FTBF-1506-40 |
SFF2x10-SM1550-622M-60KM-商业级(0~70°C) |
|
FTBF-1506-40I |
SFF2x10-SM1550-622M-60KM-工业级(-40~85°C) |
注：本产品有全国产化型号可选
本产品为FTBF系列，仅展示部分参数，如有需要，请联系我们。
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
