84Mb/s  单模双发射光模块

特点：
● SC/FC/ST或尾纤型光接口，单模双发射光模块
● +3.3V /+5V供电
● 接口电平兼容标准TTL电平和CMOS电平
● 标准1×9管脚封装,引脚配置与 Multisource 协议兼容
● 发射器件为1310nm FP 或1550nm DFP 激光器
Feature：
● SC/FC/ST receptacle optical interface and pigtail optical interface
● Multi-mode Duplex fibers optical transceiver
● Standard +3.3V/ or +5V Power Supply
● Standard TTL data output with signal detect indication, compatible with CMOS level
● Standard1×9 package
● High quality 1310nm MQW-FP LD/ 1550nm FP LD
● Receiver has a planner InGaAsP PIN

应用：
●适用于84Mb/s以下速率的光纤传输系统。

参数：Specification

极限值
Absolute Maximum Ratings

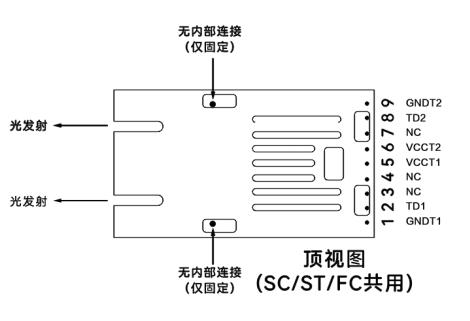

管脚定义
Pin Connections

顶视图 Topview

外形尺寸及接口定义
Dimension and optical interface

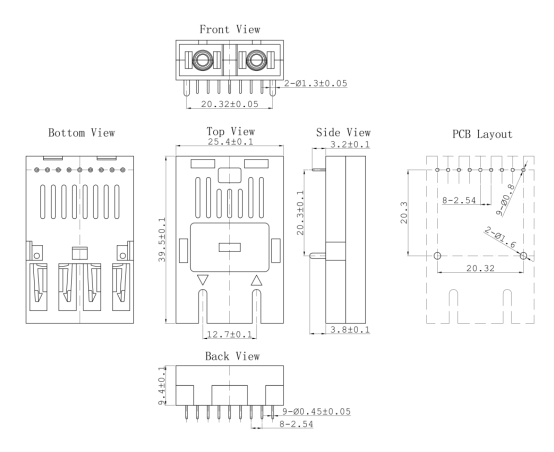

双发SC型接口
Double emission SC optical interface

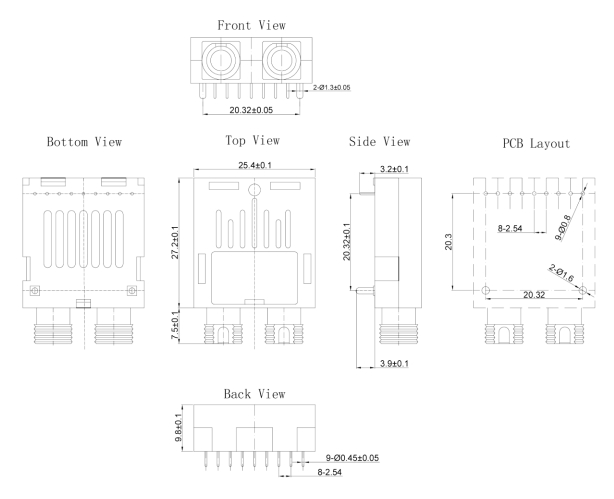

双发 FC 型接口（工业级）
Double emission FC optical interface

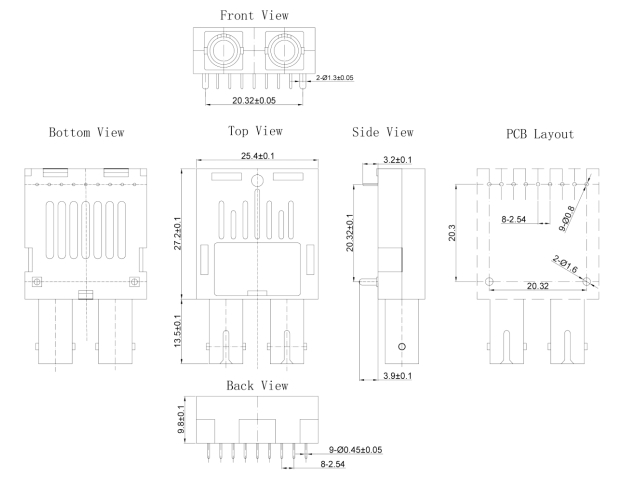

双发ST型接口（工业级）

选型Ordering information

备注：“GC”，表示全国产。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
