8CH 100GHz DWDM Module

1.Document History

Date	Customer Document/Drawing Number	Future Spec Review Number	Note
07/13/2022	NA	FT-AR-8CH-DWDM	First release

2.Product Code

Item Number	Customer Part Number	Future Part Number	Description
1	NA	NA	8CH 100GHz DWDM Module,C21-C28,G657A2,900um Loose tube,-50~70℃
2	NA	NA	8+8CH 100GHz DWDM Module,C21-C28,G657A2,900um Loose tube,-50~70℃

3.Specifications

3.1 8CH 100GHz DWDM MODULE SPECIFICATION

Parameters	Specifications	Unit
Channel Number	8	CH
Channel Center Wavelengths (nm)	C21-C28	-
Channel Passband（0.5dB）	lc ±0.11	nm
Insertion Loss	≤2.3	dB
Ripple	≤0.5	dB
PDL	≤0.35	dB
TDL	≤0.6	dB
Adjacent Isolation	≥30	dB
Non-adjacent Isolation	≥40	dB
RL	≥45	dB
Dir	≥50	dB
Optical Power (CW)	300	mW
Dimension	30x16x6.5 mm	mm
Fiber Type	G657 A2,900um Loose tube
Fiber Length	＞1	M
Connector Type	待定
Operating Temperature	-50 ~ +70	°C
Storage Temperature	-55~ +80	°C

3.2 8+8CH 100GHz DWDM MODULE SPECIFICATION

Parameters	Specifications	Unit
Channel Number	8+8	CH
Channel Center Wavelengths (nm)	C21-C28	-
Channel Passband（0.5dB）	lc ±0.11	nm
Insertion Loss	≤3.5	dB
Ripple	≤0.5	dB
PDL	≤0.35	dB
TDL	≤0.6	dB
Adjacent Isolation	≥30	dB
Non-adjacent Isolation	≥40	dB
RL	≥45	dB
Dir	≥50	dB
Optical Power (CW)	300	mW
Dimension	30x16x6.5 mm	mm
Fiber Type	G657 A2,900um Loose tube
Fiber Length	＞1	M
Connector Type	待定
Operating Temperature	-50 ~ +70	°C
Storage Temperature	-55~ +80	°C

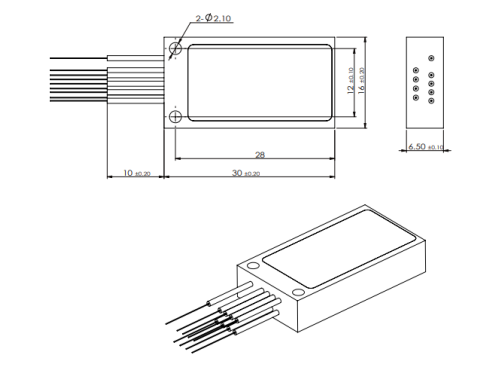

4.Mechanical Dimension

5.All materials used for the parts are RoHS compliance.

注：本产品有全国产化型号可选
本产品为FT-AR系列波分复用器，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
