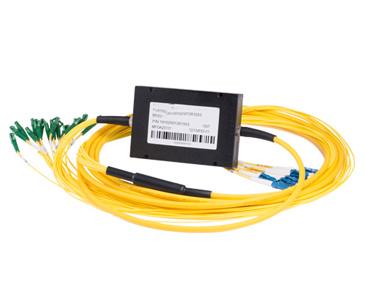

ABS盒式PLC光分路器
Description
产品介绍:
北亿纤通8-1x2 ABS PLC分路器集成了8个1x2器件,8个1x2 PLC分路器独立工作互不干扰。ABS盒式封装对内部光学组件和线缆具有良好的保护作用,设计简便,安装可靠,是PON网络中最常用的分配器。 输出端主干光缆通过分支输出,适合长距离布线,25M,50M,100M
产品特性:
● 长主干分支光缆型盒式分路器
北亿纤通的8-1x2 ABS PLC 分路器,集成了8个1x2器件,8个1x2 PLC 分路器独立工作互不干扰。
● 损耗低,分光均匀
低插入损耗,低偏振损耗。波长范围宽,良好通道均匀性;工作温度（-40℃~85℃）;分光均匀,可以将信号均匀分配给用户。
● ABS盒式封装,结构紧凑
ABS盒式光分路器对内部光学组件和线缆具有良好的保护作用,设计简便,装可靠。结构紧凑,体积小,可灵活应用于各种规格的交接箱内。
● 长距离布线可靠安全
输出端主干光缆通过分支输出,适合长距离布线,25M,50M,100米等。
● 定制化选择
SC/FC/LC连接器可任意选择,主电缆的长度也可以定制,4-1×4,8-1×2,8-2×2更多通道分路器可选择,可提供G652D/G657A1/G657A2型光纤。
产品规格:
| 参数 | 8-1x2 | 8-2x2 | 4-1x4 |
| 工作波长(nm) | 1260～1650 | ||
| 光纤类型 | G652D/G657A1/G657A2/ 客户指定 | ||
| 插入损耗(dB) | ≦ 4.2 | ≦ 4.5 | ≦ 7.6 |
| 均匀性(dB) | ≦ 0.5 | ≦ 1.0 | ≦ 0.8 |
| 回波损耗(dB) | ≧ 55 | ≧ 55 | ≧ 55 |
| 偏振相关损耗(dB) | ≦ 0.2 | ≦ 0.3 | ≦ 0.2 |
| 方向性(dB) | ≧ 55 | ≧ 55 | ≧ 55 |
| 主干光缆类型 | Ø6mm 双外皮光缆 | ||
| 主干光缆长度（M） | 15/25/50/客户指定 | ||
| 连接头类型 | SC/FC/LC/客户指定 | ||
| 盒子尺寸（L×W×H）(mm) | 120×80×18 | ||
| 储存温度(℃) | -40～85 | ||
| 工作温度（℃） | -40~85 | ||
北亿纤通专注于光纤传输系统的研发和生产,拥有实力雄厚的研发团队以及专业的质检体系。荣获ISO9001:2008认证,且通过多种质量认证体系, 如CE,ROHS,FCC等通过不断整合光通信行业供应链,加强供应链品质控制,给客户提供高品质的产品。
