兼容安华高HCPL-3120

产品描述
FCPL-3120是一款门级驱动型光耦芯片,最大峰值输出电流可达4.5A,最大可驱动1200V/100A的IGBT 或者MOSFET,应用于电机控制和工业逆变等领域。
FCPL-3120由高响应度光电二极管,高增益差分跨阻放大器和轨到轨功率输出级构成。内置的高响应度光电二极管和高增益差分跨阻放⼤器,使芯片具有较低的开启电流,同时能够提高芯片的共模噪声抑制能力。内置的轨到轨功率输出级,可实现较高的峰值输出电流,有陶瓷/塑封可选,有商业级/工业级/军品级可选。

产品特点
● 宽电压范围:+15V~+30V
● 4.5A峰值输出电流
● 最大300ns的开关速度
● 轨到轨输出结构
● 带迟滞的欠压保护
● 兼容国外产品:HCPL-3120

产品应用
● 隔离线接收器
● 共地干扰的隔离
● 开关电源
● 电机驱动中的功率管隔离
● 替代脉冲变压器
● 仪器输入输出隔离
● 逆变器隔离
● IGBT驱动隔离

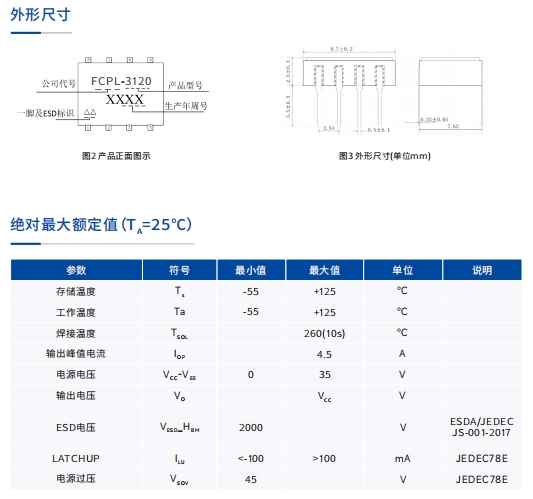

4 7 454 7 454 7 454 7 45













注:本产品为全国产
Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
