保偏光纤环形器
Description
保偏光纤环形器
特性
● 低插损
● 高消光比
● 高稳定可靠性
应用
● 光纤放大器
● 光纤传感
● 光纤激光器

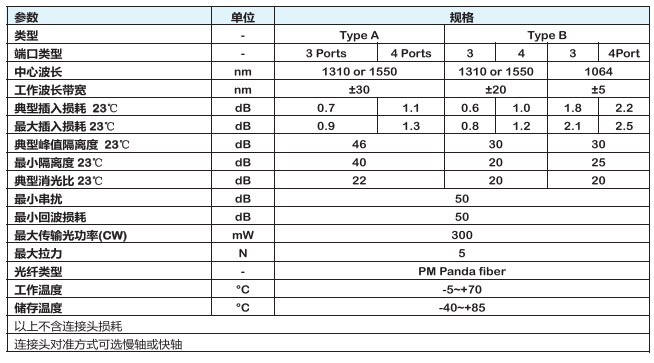

参数指标(单轴)

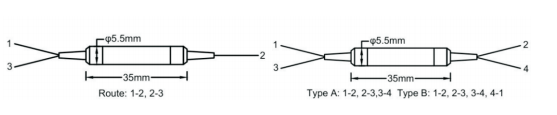

封装尺寸

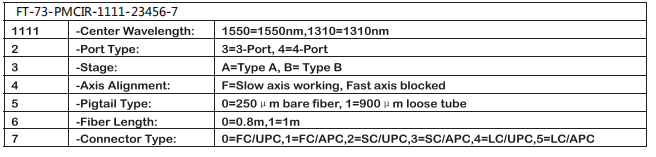

订购信息
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
