标准光模块
CWDM光收发模块
Description
功能概述
● 支持粗波分复用系统
● LC可插拔设计,方便动态和灵活的配置数据连接
● 最大支持传输速率达6.25Gbps
● +3.3V单电源供电
● 适应于高速信号完整性的表面贴装引脚
● 更紧凑的结构设计,超小模块尺寸
● 高可靠，全金属外壳，抗振动设计
适用范围
● 主要应用于数字雷达阵列，高可靠、高数据率点对点光纤通信以及信号处理中心高密度信号互联。
主要性能指标
| 中心波长范围(nm) | 1271～1571 | 1271～1571 |
| 传输速率(Gbps) | 4.25 | 6.25 |
| 接收灵敏度(dBm) | ≤-16 | ≤-14 |
| 输出光功率(dBm) | ≥+2 | ≥+2 |
| 消光比(dB) | ≥6 | ≥5 |
| 电源电压(V) | DC+3.3 | |
| 工作温度(℃) | -40～+85 | |
订购信息
| 型号 | 传输速率 | 连接器方式 |
| FT-CXXXM04GC | 4.25Gbps | LC插拔 |
| FT-CXXXM06GC | 6.25Gbps | LC插拔 |
XXX表示对应CDWM波长

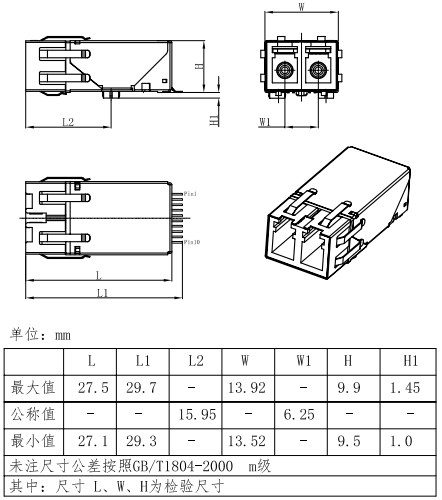

结构尺寸图
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
