DVI双通道延长器

产品简介
FT-XE-DD-1402VL支持将DVI DualLink(DVI双链路)视频信号通过两芯光纤进行远距离光纤传输。可将像素时钟高达300M或165M*2的视频无损实时传输，有效解决了DVI接口4K超高清传输问题。由于DVI接口的牢固性，该产品被广泛应用于医疗影响系统、工程投影、拼接、融合等系统。

产品特性
● 二芯LC光纤接口,易操作.
● 单多模光纤复用,传输距离高达3000M.
● 支持分辨率高达3840x2160@30Hz或2560x1440@60Hz或 1920x1080@120Hz.
● 支持EDID手动学习及初始EDID（默认EDID）恢复功能.
● 内嵌音频（可以传送不带HDCP的HDMI视频及音频信号).
● 低功耗(200~350mA),最佳散热性能的金属外壳设计.
● 尺寸紧凑,上盖可分离式设计,DVI接口可供电,适合矩阵内部使用.
● 指示灯状态丰富：包含电源,HPD,EDID,LA,Fiber LOS等指示.
● 所有接口及指示灯,按键全部集成在前置面板,方便客户使用.
● 采用国际一线大厂光器件,品质保证,无后续维修困扰.
● 隐藏式串口设计，软件升级不费力
● 支持ESD保护：±15kV (air), ±8kV (contact).
● 中国制造,符合RoHS标准,品质稳定。

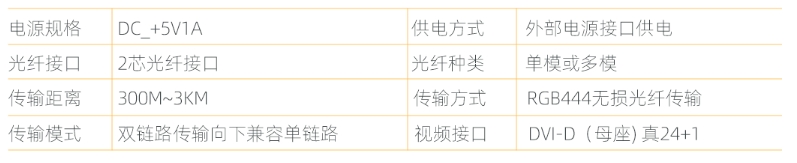

规格参数

注：本产品有全国产化型号可选
本产品为FT-XE系列，仅展示部分参数，如有需要，请联系我们。
