标准光模块
DWDM CFP Transceiver
Specifications
- 产品型号: DWDM CFP Transceiver
- 兼容品牌: 全系列
- 封装类型: CFP
- 传输速率: 40G/100G/400G
- 传输距离: DWDM CFP Transceiver
- 发射波长: DWDM CFP Transceiver
- 接收波长: DWDM CFP Transceiver
- 工作温度: 商业级0℃～+70℃/工业级-40℃～+85℃ 可选
- 数字诊断: 带DDM
- 接收灵敏度: DWDM CFP Transceiver
- 接收灵敏度: DWDM CFP Transceiver
Description
DWDM CFP Transceiver
F-tone’s 100G metro DWDM CFP transceiver offers an industry-leading cost optimized solution for metro 100G DWDM transport.
Feature:
- DWDM 100Gbps Transceiver
- Pluggable CFP module – compliant to existing CFP blade design
- 10x10 MSA standard compliant
- C-band, 4 bands each 100G
- Up to 1600 ps/nm dispersion tolerance
- Up to 40km or 80km reach (with no external DCF and no external Optical Amplifier)
Application:
- Router interconnect
- Mesh, Ring and Point to point
- 100G client extension
- Low-cost / higher density 100G line interface
- High density 10 x 10G
- Metro and Dataenter connections
DWDM CFP Wiki
Responding to the call by end-users and equipment manufacturers, the 10X10 MSA is established to deliver the industry’s lowest cost 100GbE solution over single-mode fiber.
The 10X10 MSA is defining a new price and performance trajectory for 100GbE that will significantly accelerate the adoption and economics of 100G deployments.
The 10X10 MSA group is backed by a robust ecosystem of end-users, system manufacturers and optical module suppliers including Google, Brocade, JDSU and Santur.

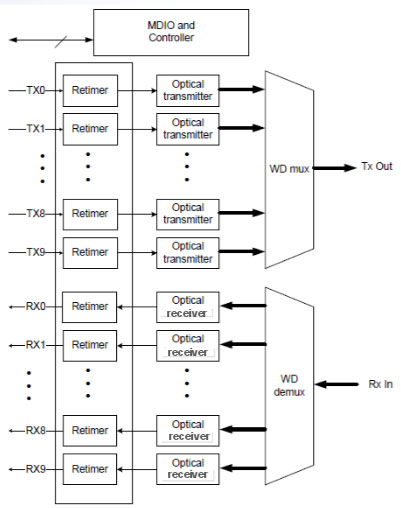

DWDM CFP inside:

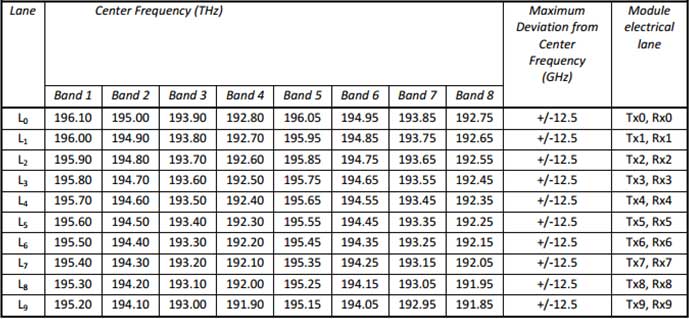

Wavelenght grid for DWDM CFP 10x10

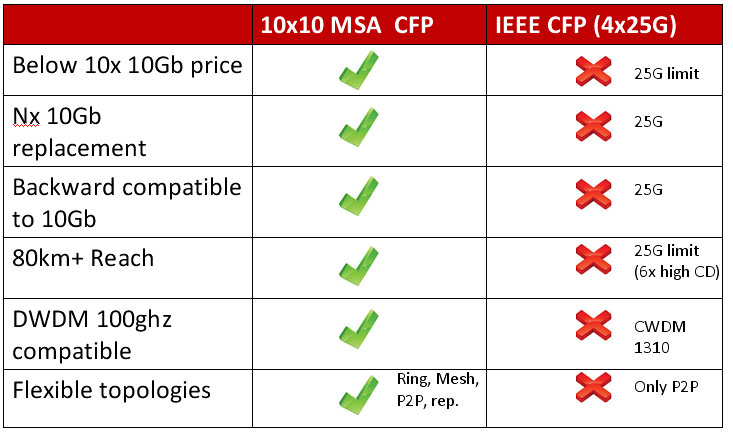

DWDM CFP 10x10 advantages
