FFBR-1521Z_FFBR-2521Z简介

FFBR-1521Z_FFBR-2521Z是一种LED光纤通信收发器，隶属于成都北亿纤通科技有限公司，ICP备案号：蜀ICP备12009917号，主营产品：FFBR-1521Z/2521Z系列光纤收发器件。

主营产品
FFBR-1521Z/2521Z系列光纤收发器件，配合650nm塑料光纤使用，为工业、发电、医疗、交通和游戏应用等领域提供高性能低成本的光纤通信链路，FFBR-1521Z在60mA电流驱动下，典型传输距离最小为80米。
FFBR-1521Z完全兼容AVAGO安华高HFBR-1521Z, FFBR-2521Z完全兼容AVAGO安华高 HFBR-2521Z，支持工业标准的塑料光纤接口，提供水平结构。FFBR-1521Z/2521Z适配直径1mm的塑料光纤和直径200μm的HCS光纤.
FFBR-1521Z为发射器，由一颗峰值波长为650nm的高功率LED芯片封装而成，配合1mm芯径的塑料光纤在60mA电流驱动下输出光功率典型值为-5dBm。FFBR-2521Z为接收器，由一颗集成光电二极管的高增益跨阻放大器构成，输出级为开漏输出，支持最大输出电压为18V。为了提高接收器输出脉宽的稳定性，接收芯片设计了自动脉宽校准电路，脉宽失真在±20ns以内。

外形尺寸图（FFBR-1521Z/2521Z）
网站宗旨

竭诚为客户提供具有性价比的产品和服务

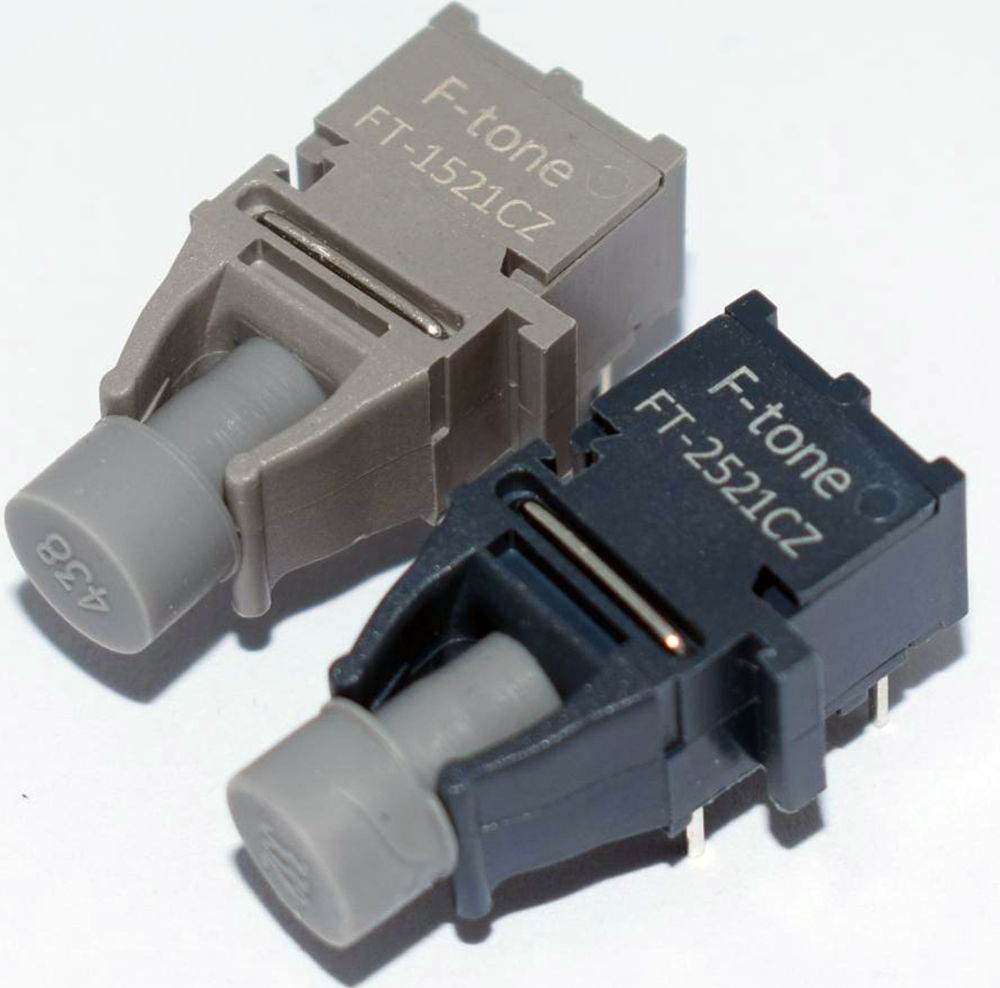

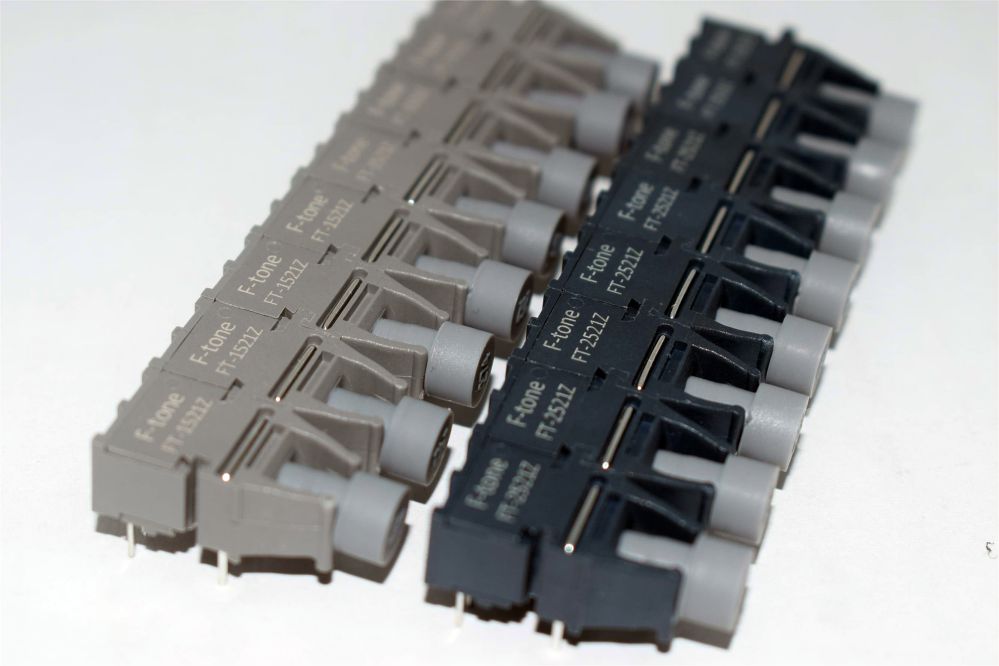

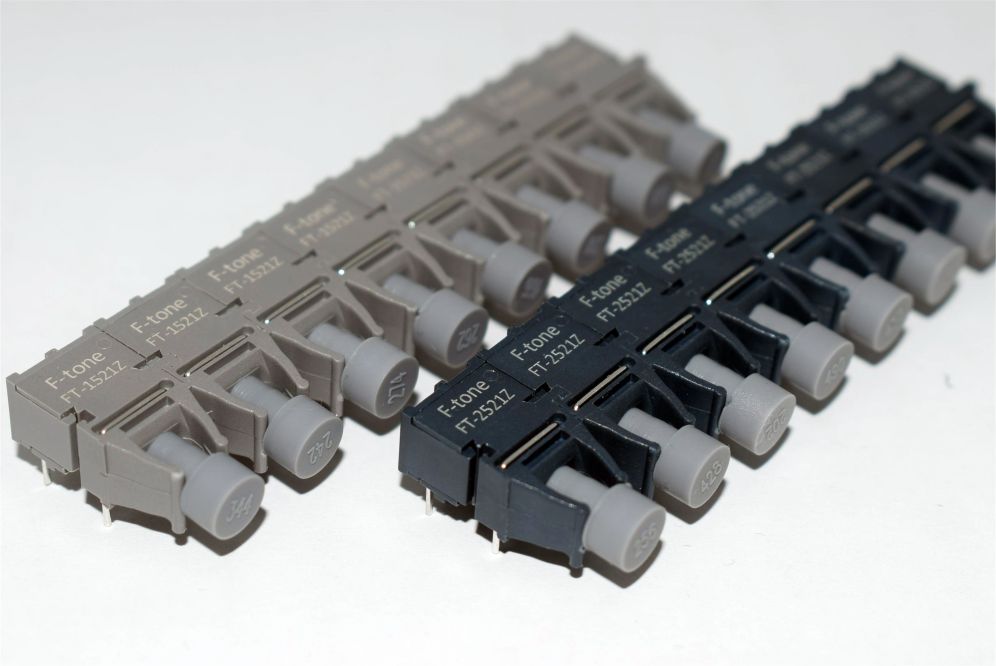

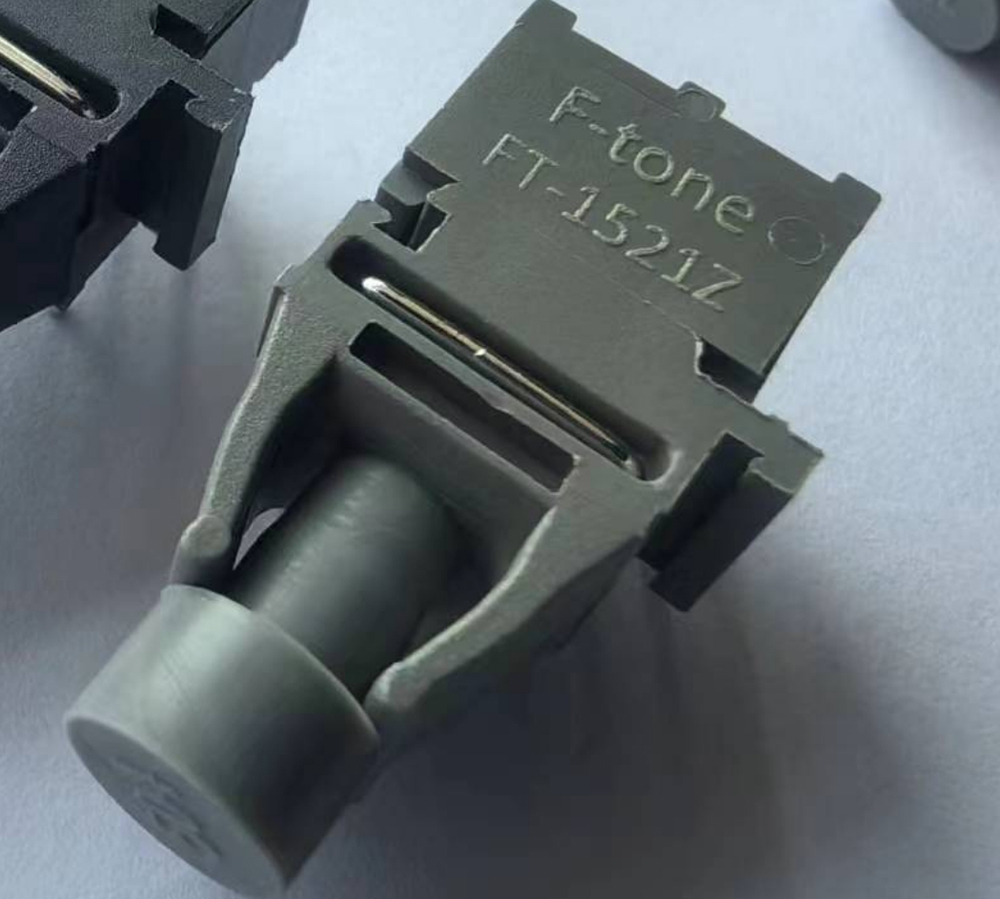

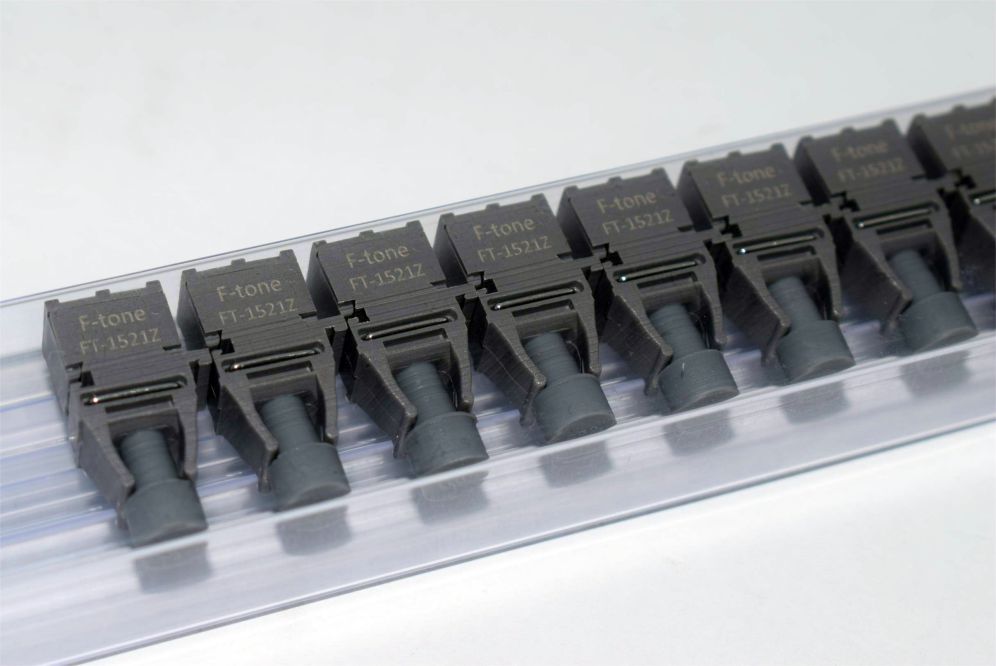

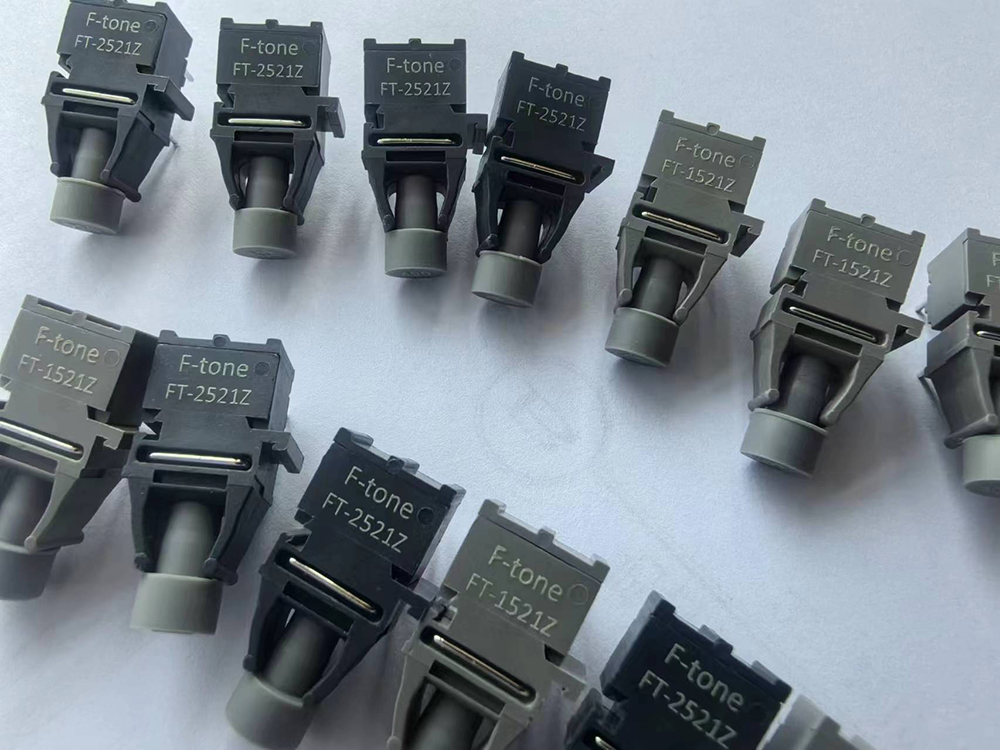

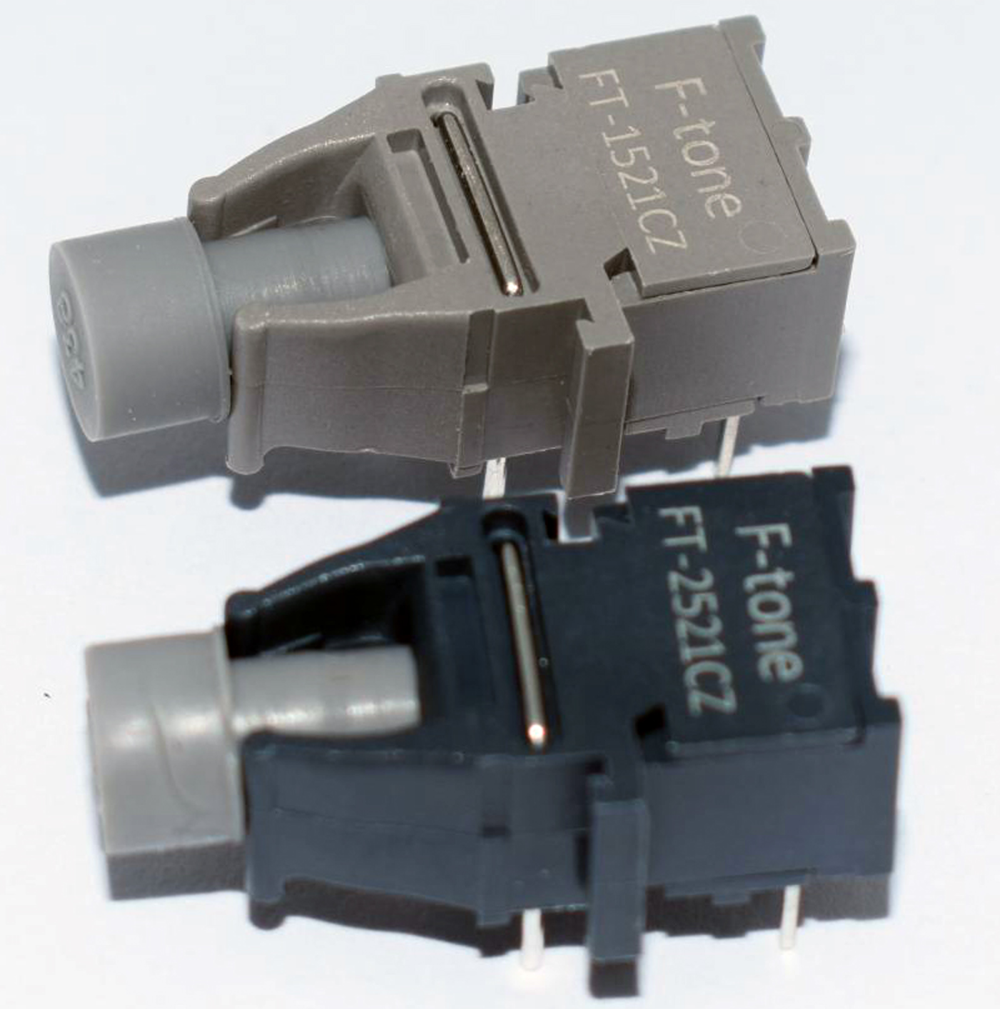

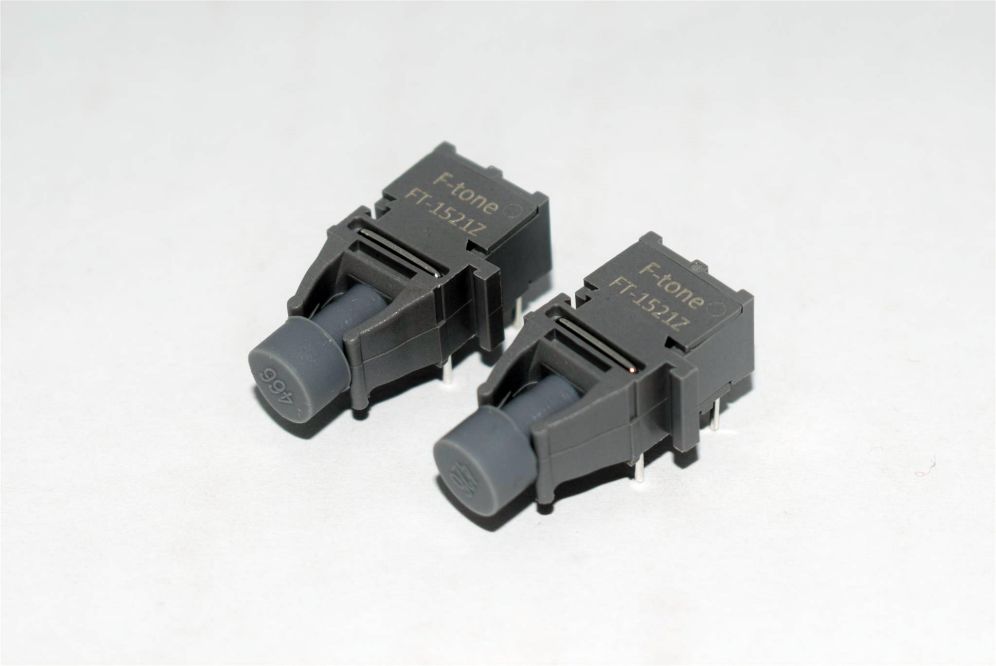

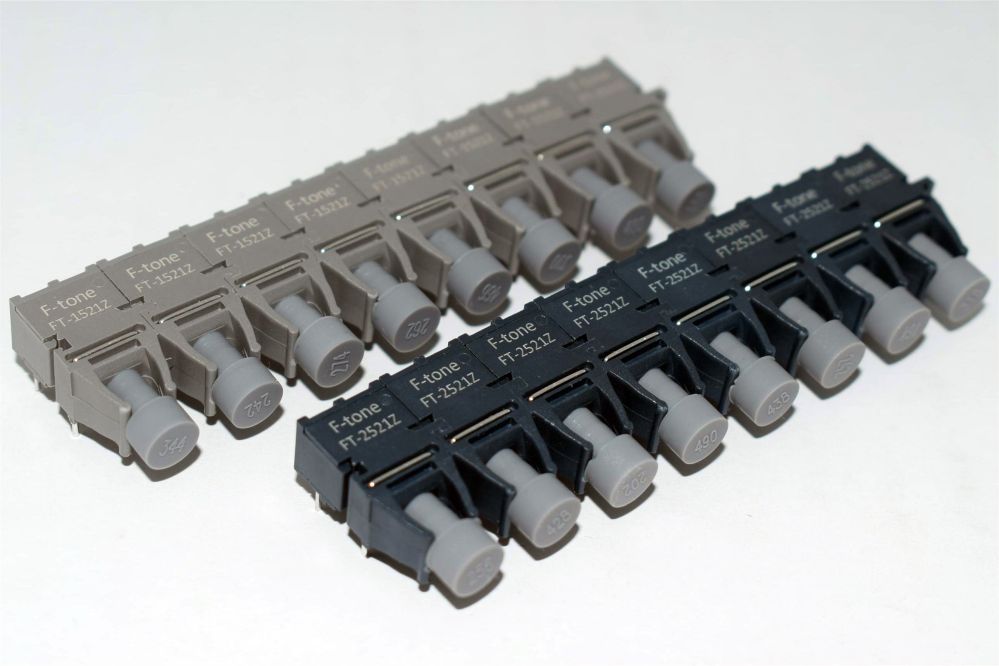

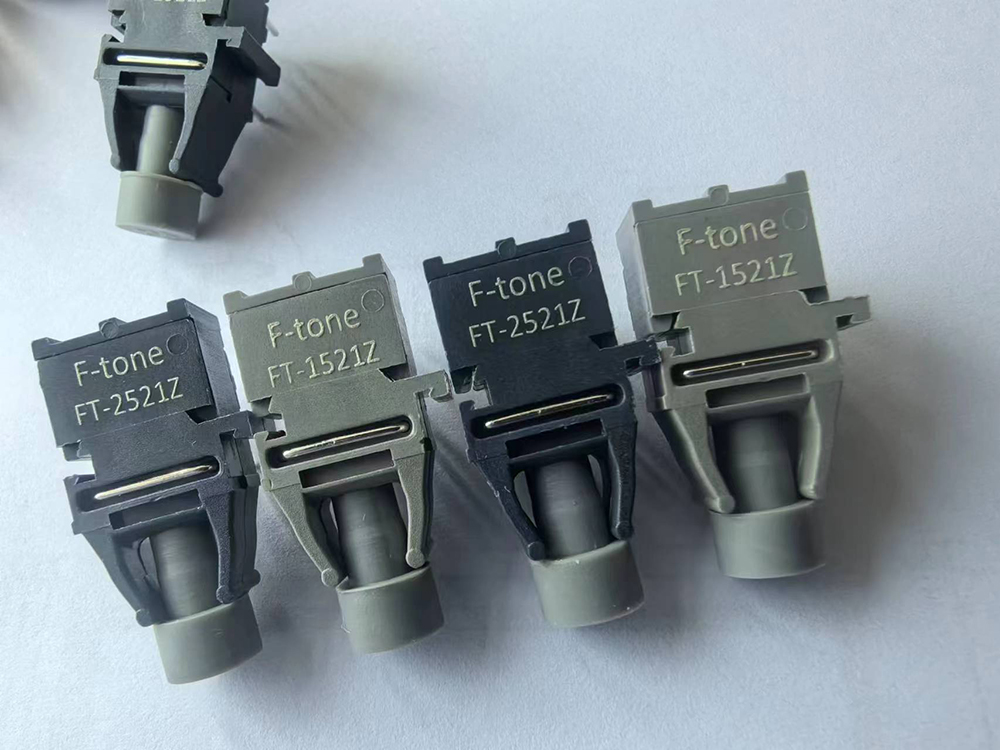

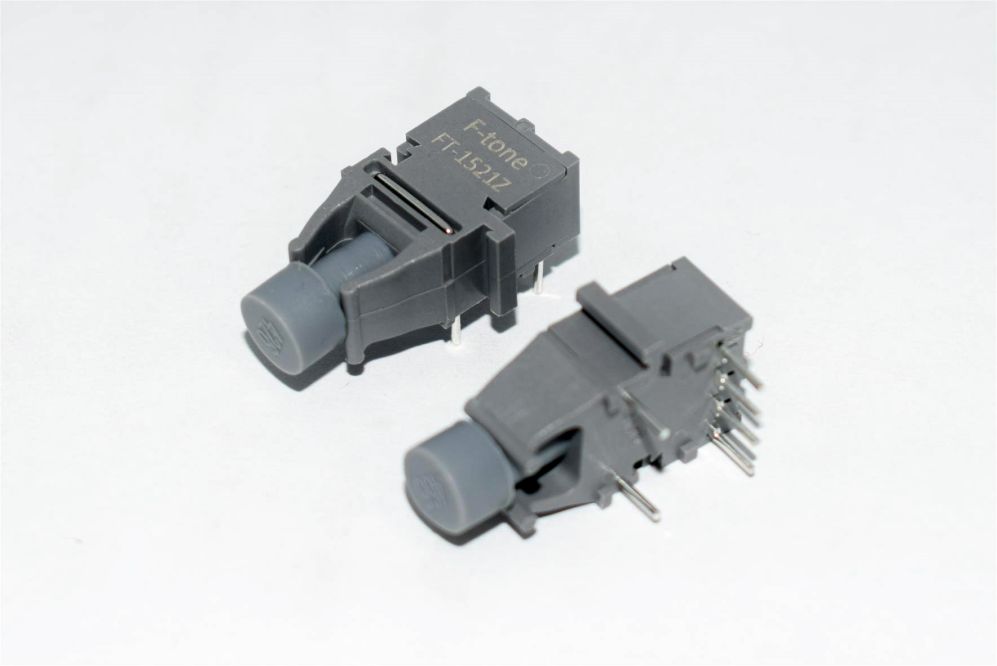

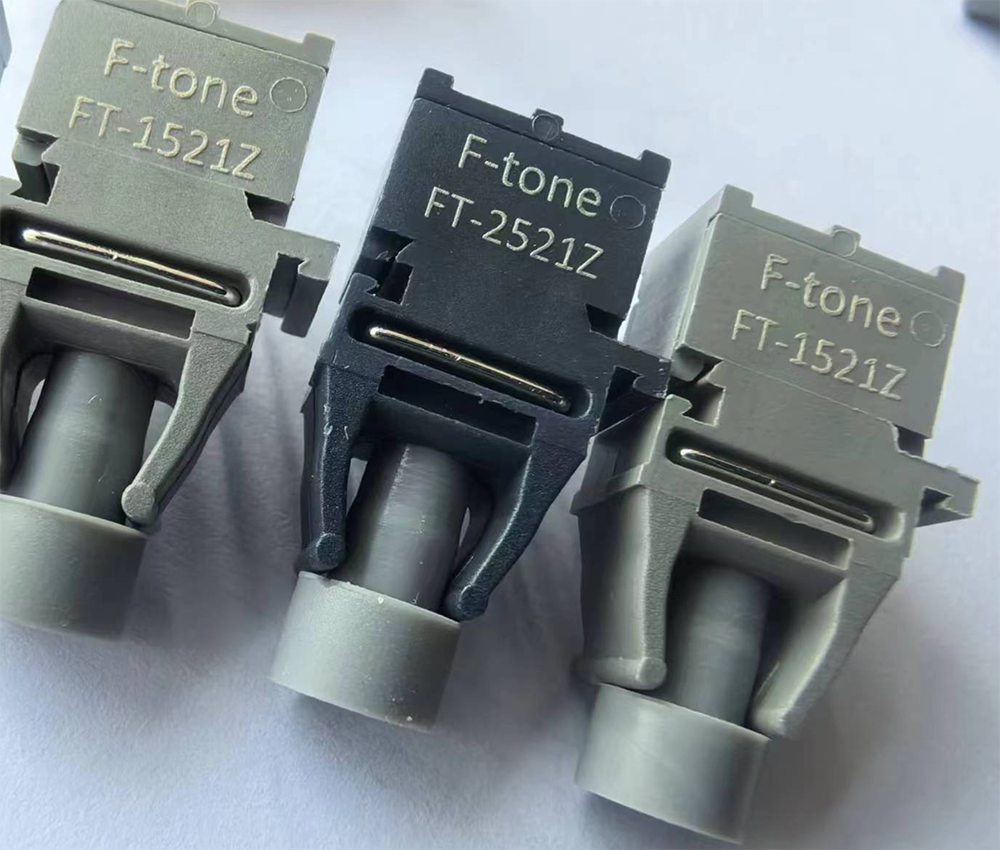

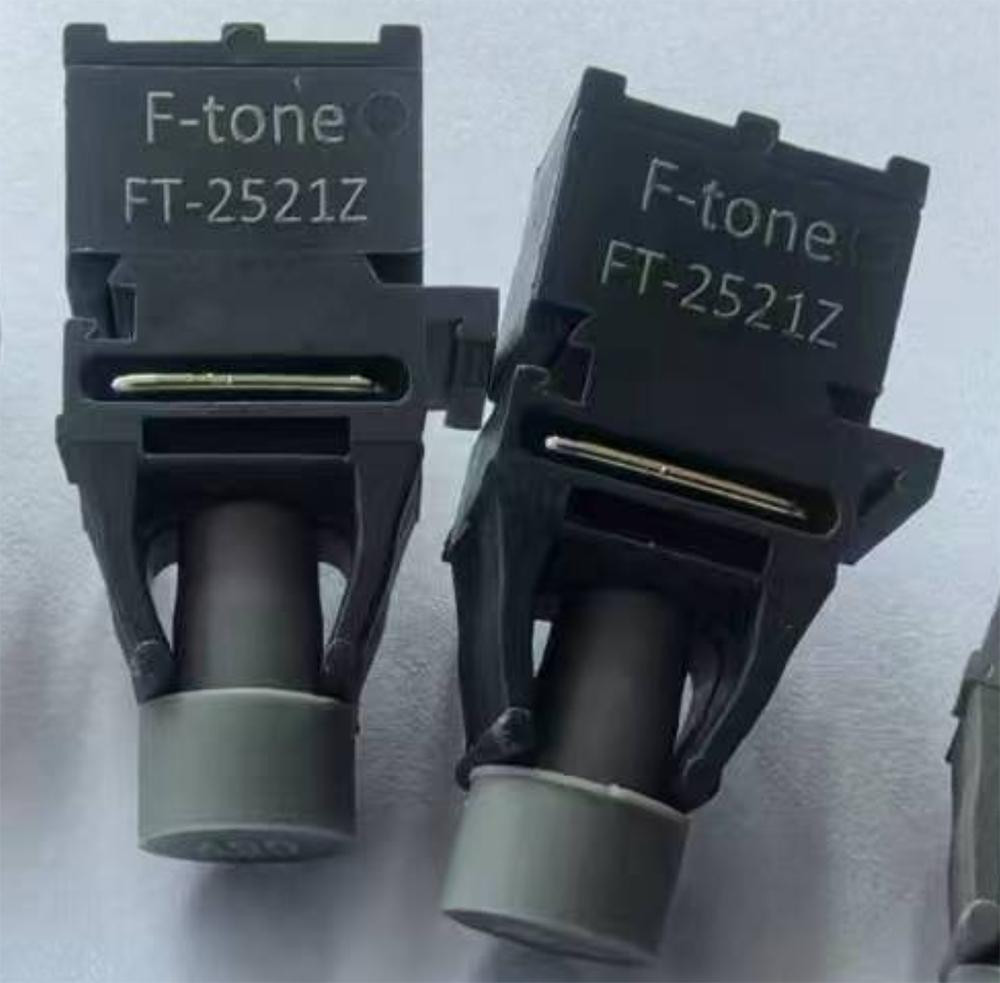

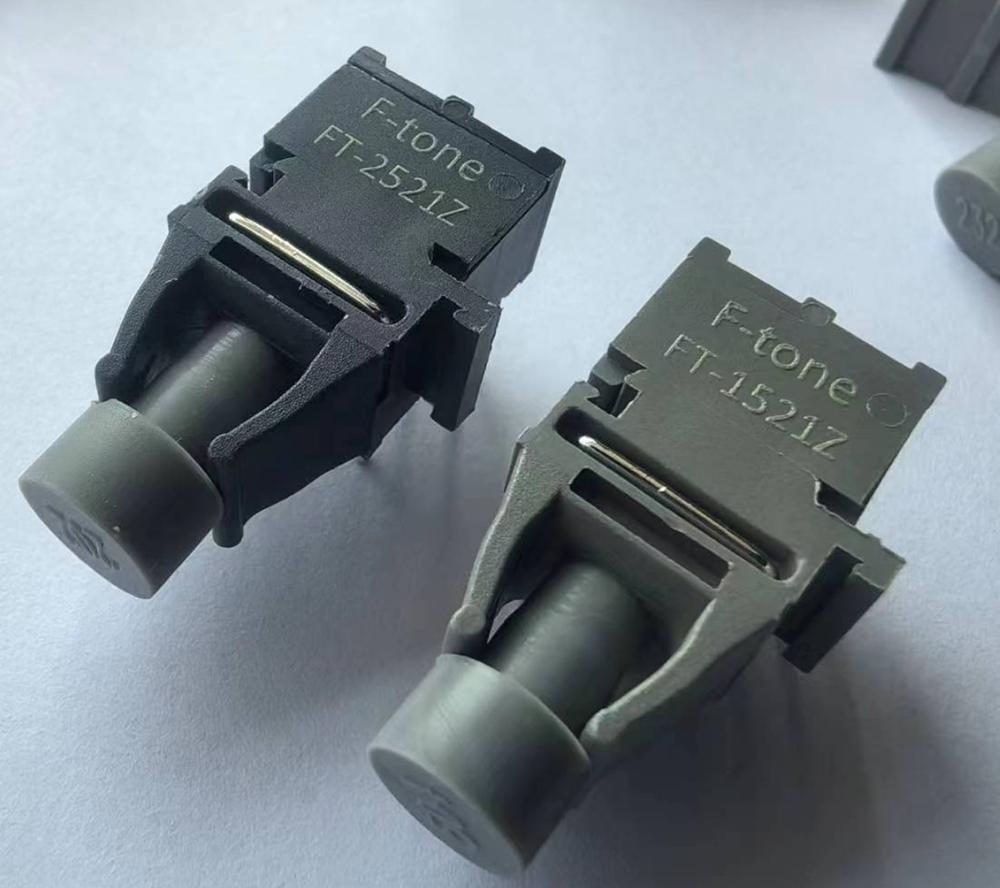

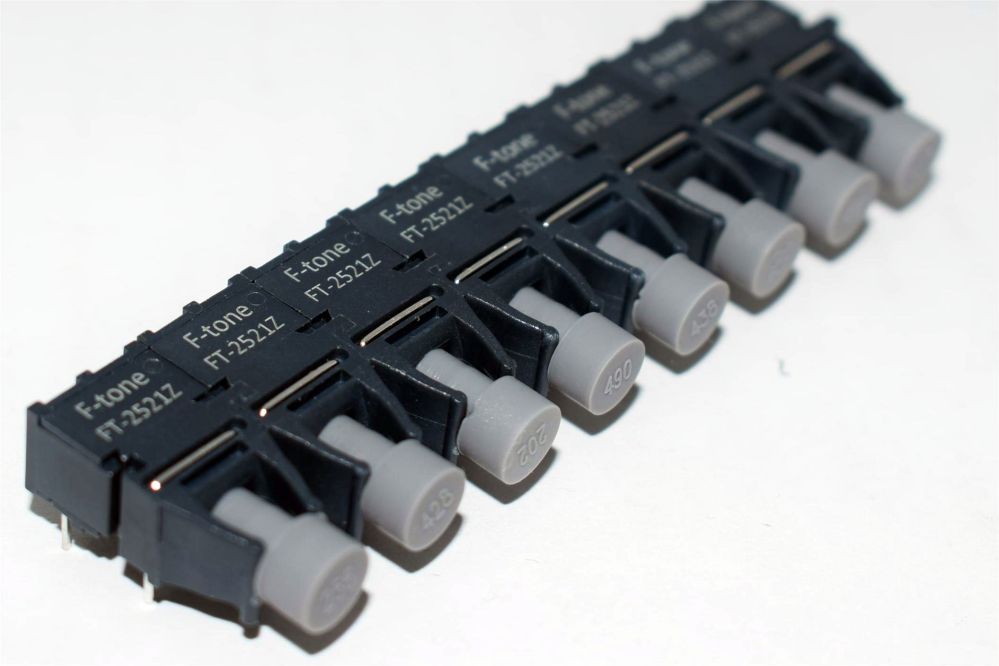

产品展示

注：本产品有全国产化型号可选
本产品为FFBR系列，仅展示部分参数，如有需要，请联系我们。

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
