120G CXP to 3x 40G QSFP+ Active Optical Cable
Description
Description
CXP to 3xQSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 120G Ethernet, fiber channel and PCIe. It is compliant with the 120Gbits Small Form factor Hot-Pluggable CXP-interface and QSFP-interface. F-tone Networks CXP to 3xQSFP is an assembly of 12 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 120Gb/s.
Features
● QSFP+ End compliant to SFF-8436
● CXP End compliant to SFF-8642 and IBTA V2 Revision 1.2.1 Annex A6
● Full duplex 12 channel 850nm parallel active optical cable
● Transmission data rate up to 10.3Gbit/s per channel
● Hot pluggable electrical interface
● Differential AC-coupled high speed data interface
● 12 channels 850nm VCSEL array
● 12 channels PIN photo detector array
● Up to 100m on OM3 MMF
● 3.3V power supply voltage
● Low power consumption: CXP End < 2.5W, QSFP End <1.5W
● RoHS compliant
● Case operating temperature
Commercial: 0 ~ +70℃
Industrial: -40 ~ +85℃
Applications
● InfiniBand 12xSDR,12xDDR,12xQDR
● Ethernet 10G,40G,100G
● Rack-to-Rack, Shelf-to-Shelf Interconnect
● Networking, NIC
● Storage: DAS, SAN, NAS
● Hubs, Switches, Routers, Servers

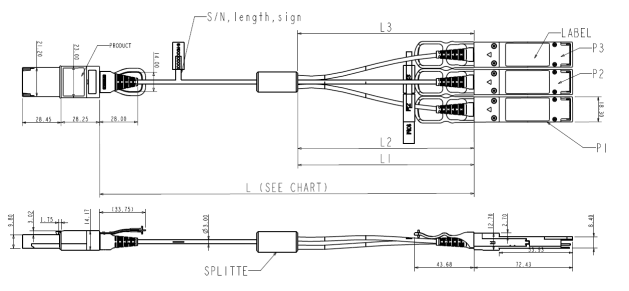

Mechanical Dimensions
Ordering information
|
Part Number |
Product Description |
|
FTXP-H2-3CQ-Oxxx |
120G CFP to 3x 40G QSFP+ Active Optical Cable,0ºC ~ +70ºC |
|
FTXP-H2-3CQ-OxxxI |
120G CFP to 3x 40G QSFP+ Active Optical Cable,-40ºC ~ +85ºC |
|
xxx :001~30,1~30 Length in meters on OM2 MMF |
|
|
xxx :001~100,1~100 Length in meters on OM3 MMF |
|
|
Further details are available from any F-tone Networks sales representative. |
|
本产品为25G~400G高速光模块系列，如有需要，请联系我们。
注：本产品有全国产化型号可选
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
