其它产品
PM Fiber array
Description
功能描述
保偏光纤阵列PM Fiber Array是利用V形槽（即V槽，V-Groove)把一条保偏光纤带安装在阵列基片上。应用于保偏光波导器件、保偏准直器阵列、不同的激光源...等等。通道数、保偏方向、操作波长或产品尺寸可客户指定。
特点：
● 低插入损耗
● 高消光比
● 高回波损耗
● 良好的环境稳定性和可靠性

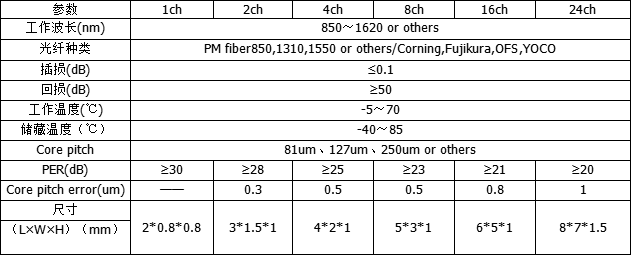

产品参数
产品应用
● 光纤激光器
● 光纤传感
● 通讯系统
● 测试仪器
● 保偏光学系统
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
