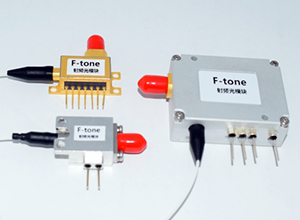

光脉冲调制模块
Description
|
Parameter |
Unit |
Specification |
Notes |
|
RF Tx-Rx link |
|
|
|
|
光脉冲调制模块Pulse width |
usec |
1-2000 |
|
|
Rise and fall time |
nS |
0.5 |
|
|
Input pulse amplitude |
V |
5 |
TTL |
|
Maximum input voltage |
V |
10 |
|
|
Input and output impedance |
Ohm |
50 |
|
|
Optical and Electrical (Tx,Rx) |
|
|
|
|
Laser diode operating wavelength |
|
1553.33nm(DWDM ITU CH30 |
|
|
Laser diode operating wavelength |
|
1552.52nm(DWDM ITU CH31) |
|
|
光脉冲调制模块Optical Power |
mW |
10 |
|
|
Receiver/Detector sensitivity |
dBm |
-20 |
|
|
Detector operating wavelength |
nm |
Cover 1500~1600 |
|
|
Optical Connectors |
- |
FC/APC |
|
|
RF input and output connectors |
- |
SMA |
|
|
光脉冲调制模块Power Supply |
VDC |
5 |
|
|
LED status indicators (Tx./Rx.) |
- |
Green |
|
|
Mechanical and Environmental (Tx,Rx) |
|
|
|
|
Dimensions of Transmitter |
mm |
160X100X30 mm |
|
|
Dimensions of Receiver |
mm |
160X100X30 mm |
|
|
Operating temperature range (Trans./ Rec.) |
0C |
-10 to 55 |
|
|
Storage Temperature range (Trans./Rec.) |
0C |
-40 to +85 |
|
Important Notice
Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.
The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
