High Accuracy Core Pitch Typical Core Pitch error <0.5um Equipped with YAGISHITAGIKEN YGN-590-FAVGMT 2. All Types of Fiber Array 3. Control Fiber Array Surface Fiber height is controlled by polish process Fiber height change is controlled by aging process Meet High Temperature Requirement High Tg bonging Epoxy to meet different temperature application Enhanced Anti-Pull Test passed pull test at high temperature conditions on special FA Mass production capability with high efficiency In-house designed fixture/tools to improve yield and efficiency Delivered half million parts in 2018

功能描述

光纤阵列系列目前大量应用于高速光模块内连接，以45°FA全反射FA作为RX接收端与PD Array直接耦合，完成光路的光电转换；随着5G网络的发展，S5G基站的增加使光模块成为最先受益者，预计有数千万量级25/50/100Gbps高速光模块用量，我国DC的巨大发展空间使得光模块的发展空间更加可观；其次，5G的巨大容量和新架构使得WDM/WSS成为受益者，大量引入无源WDM、有源WDM OTN/M-OTN、WDM PON和ROADM/OXC等，对WDM和WSS需求较大。
45°全反射型FA大量应用于100G高速光模块内连接，FA作为RX接收端与PD Array直接耦合，完成光路的光电转换，拥有行业顶尖的工程研发团队，为国内外大型光模块厂商提供质量优质、价格低廉的FA产品；高密度高性能（24通道以上，core pitch error＜1um）的FA大量应用于WSS 模块，北亿纤通拥有YGN-590(柳下技研)可以检测core pitch error精确到0.1um，保证产品品质和客户良好的使用感受。

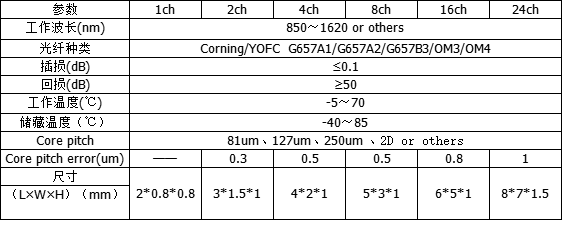

产品参数

产品应用
100G PSM4高速光模块
400G DR4高速光模块
WSS 高密度光纤阵列

Important Notice

Performance figures, data and any illustrative material provided in this data sheet are typical and must be specifically confirmed in writing by F-tone Networks before they become applicable to any particular order or contract. In accordance with the F-tone Networks policy of continuous improvement specifications may change without notice.

The publication of information in this data sheet does not imply freedom from patent or other protective rights of F-tone Networks or others. Further details are available from any F-tone Networks sales representative.
